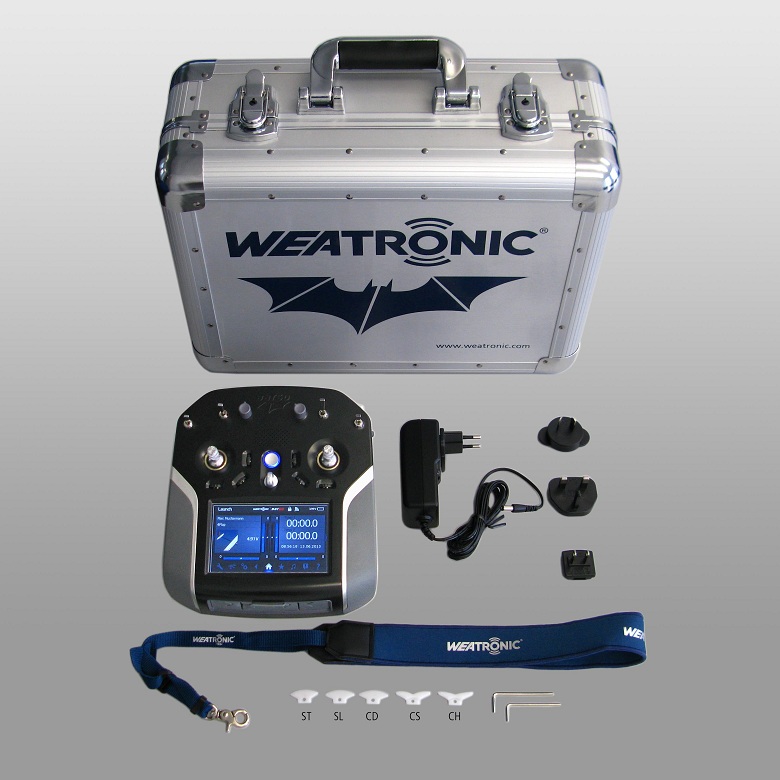

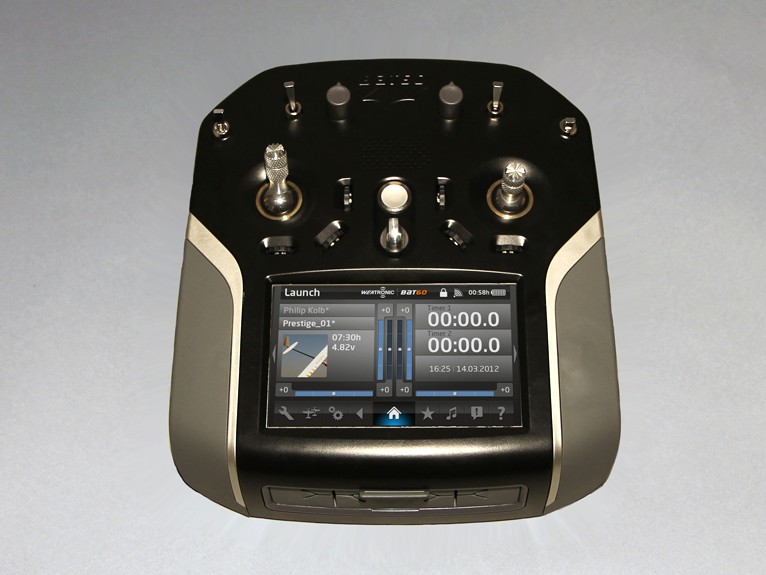

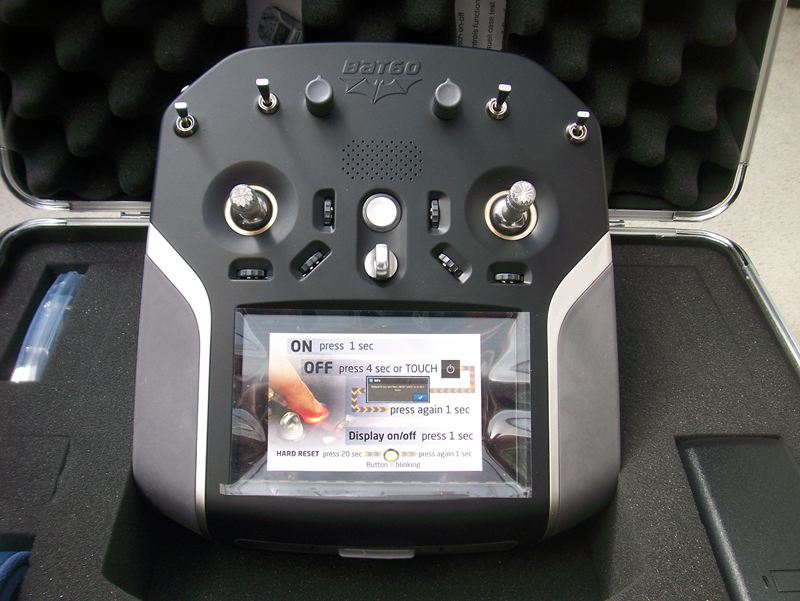

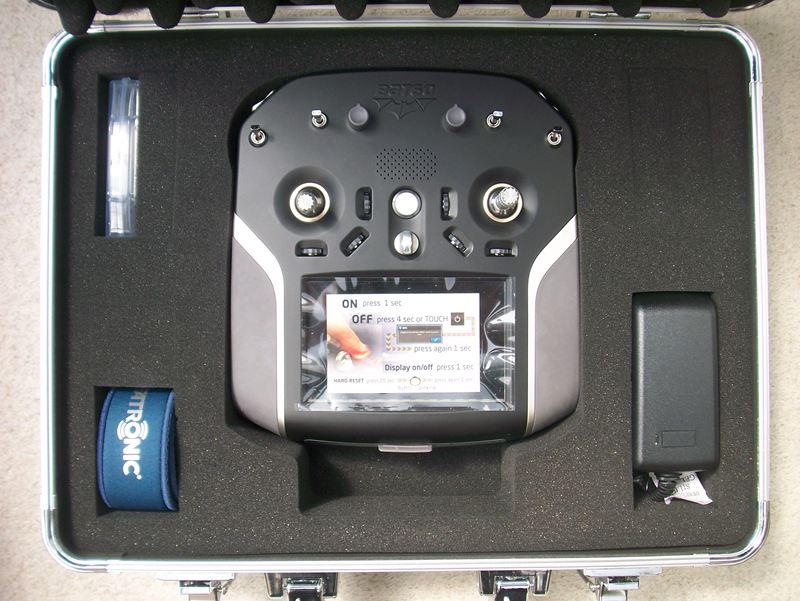

weatronic ® transmitter BAT 60
weatronic BAT 60 User Manual now available

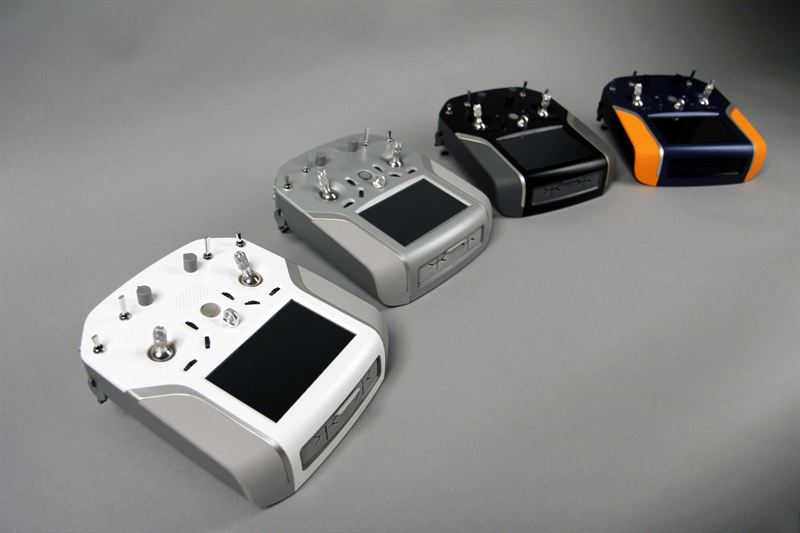

With the new transmitter BAT 60 weatronic sets a new standard. New design and colors and all the technical features will make your heart beat faster. Amazing high quality, 9 ball bearing per stick, the non-wearing hall sensors, the new battery management and - last but not least - the brand new innovative stick design with the clever concept of interchangeable feedback parts convinced even the last critics.
High-tech standard made in Germany in the Aeronautic Centre:
• Proprietary gimbal design with 9 ball bearin
• wear-free thanks to the hall-sensor
• innovative gas- / brake handle conce
• 22 free programmable control element
• 5ʺ capacitive touch screen 800 x 480 colour LC
• „Look and find“ function due to built in GPS receive
• web interface for external access and programming
• separate charge controller for each Li-Ion cell
• one battery is always reserved at 25% reserve capacityfor the safer landing
• micro-SD card for data recording
• USB-A and USB-B (master and slave)
• 3,5 mm headphones socket
• two parallel transmitting and receiving systems
• optional 3-axial positioning with acceleration sensors
• optional WLAN and Bluetooth, UMTS via USB
• optional with control functions in stick and selectable stick length
Developed to the new ETSI standard EN 300 328 V1.8.1
BAT 60 Interactive Simulation Software - Click on the options below to simulate the transmitter functions
Programming and adjusting:
The new BAT 60 - now the pilot can adjust his model, with all GigaControl options, directly with the transmitter. Simple - easy to understand - and intuitive for all users, from the beginner to the advanced.

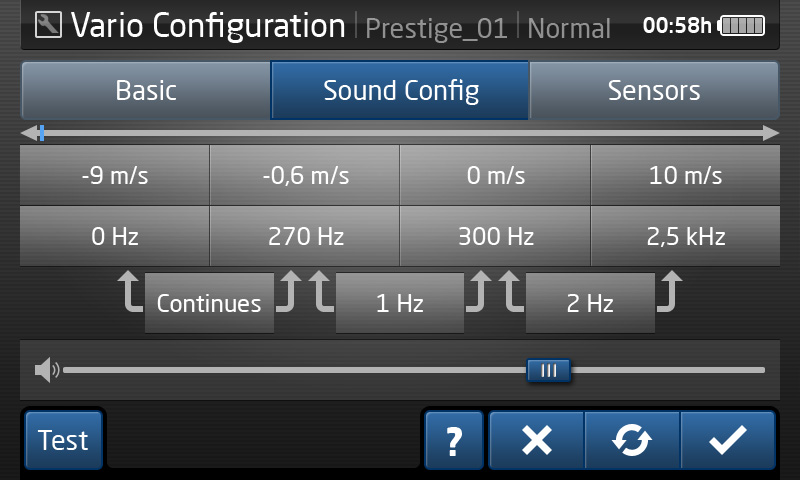

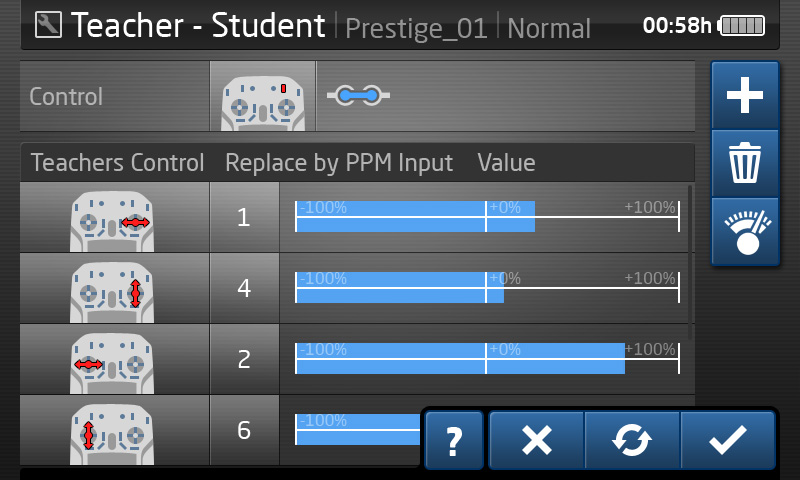

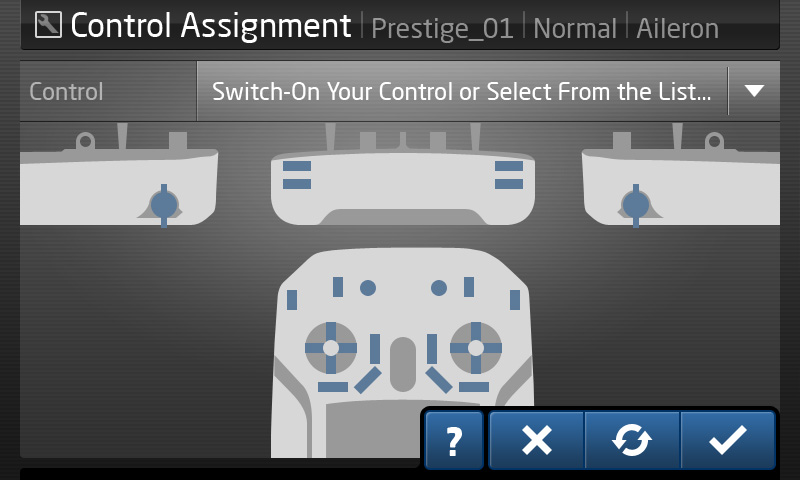

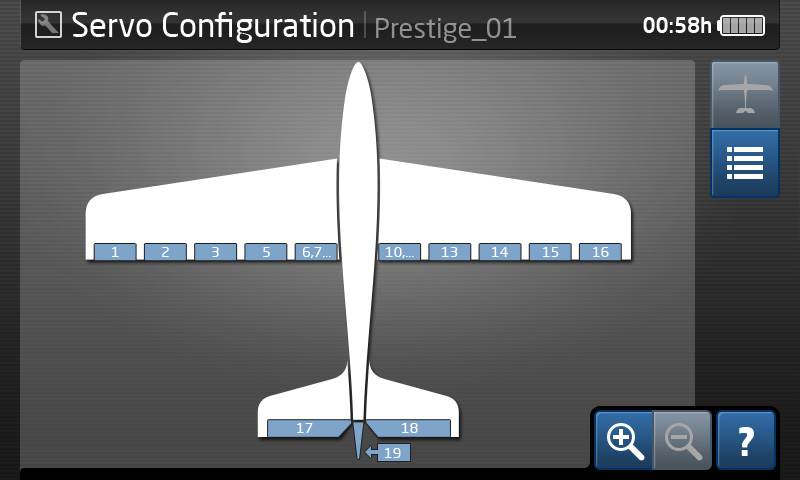

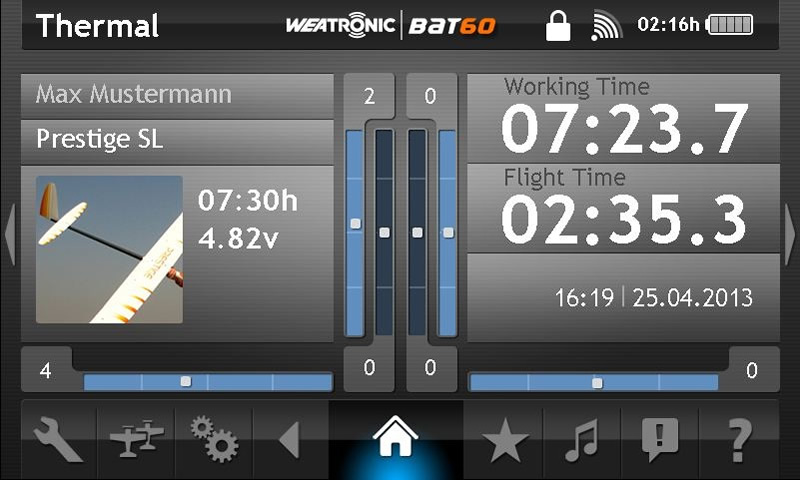

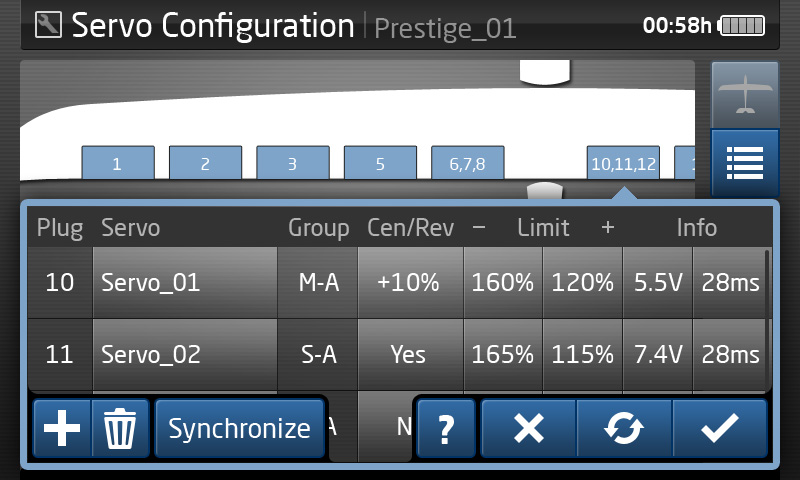

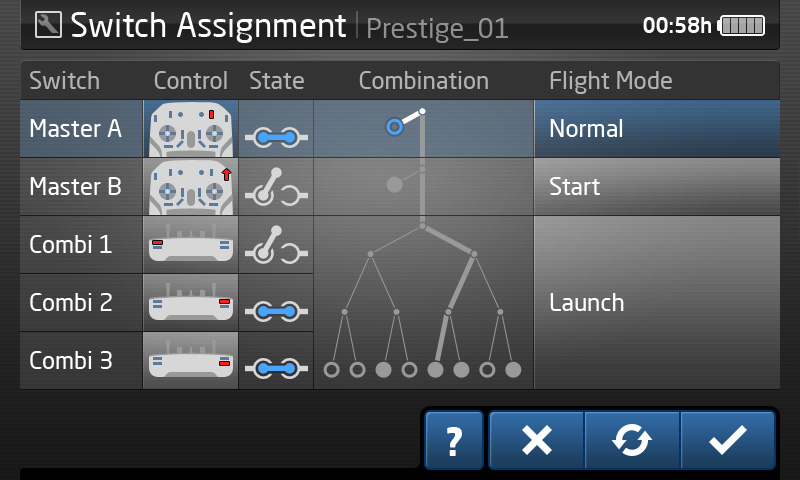

Examples of the menu structure:
Technical data:
- transmission: adaptive frequency hopping operation with “listen before talk” function
- hopping-frequencies: 80
- hopping-speed: 100 Hz
- antennas: 2 x patch antennas (angle of radiation > 180°)
- 4 Li-Ion batteries à 3000 mAh
- integrated GPS receiver
- operating- and charging voltage: 10,0 - 20,0 Volt
- temperature range: -10° C to +60° C, non-condensing
- dimensions: 220 x 200 x 51 mm (L x W x H)

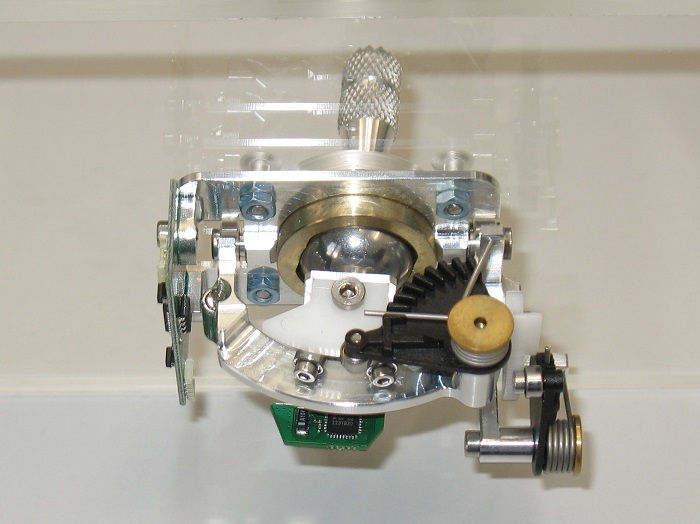

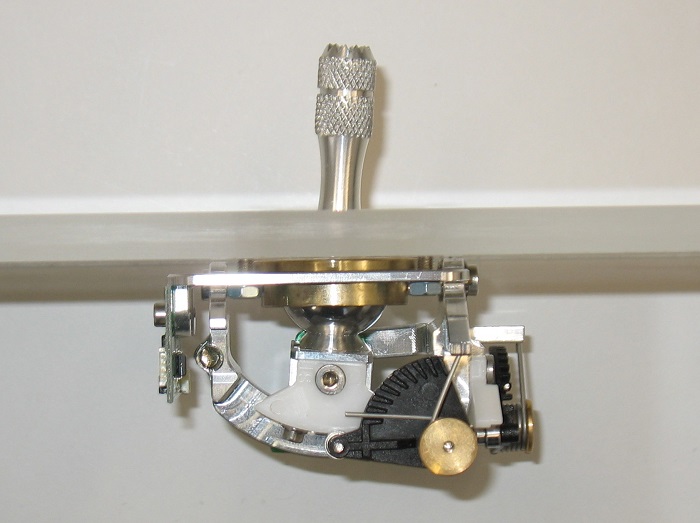

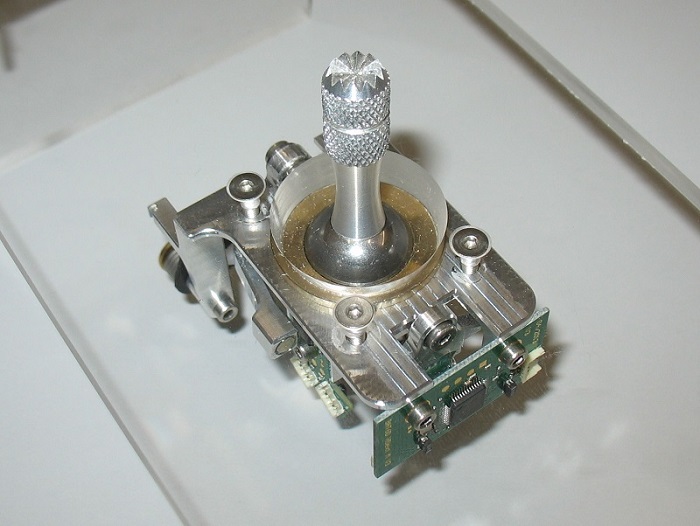

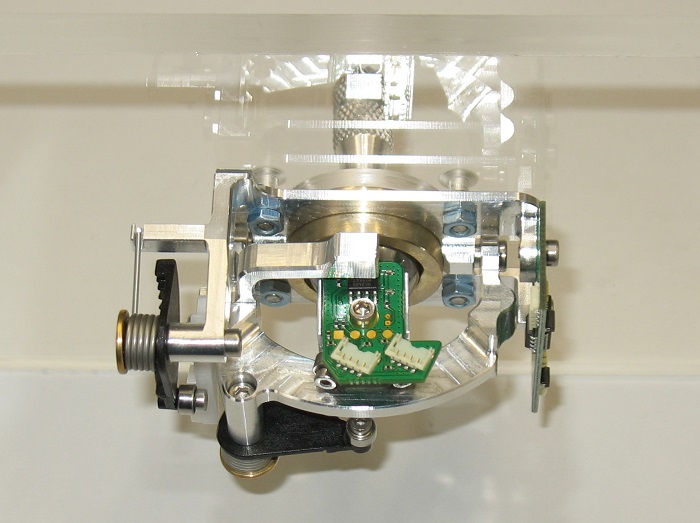

WORLD FIRST - the weatronic transmitter sticks
weatronic keeps with the "made by pilots - made for pilots" motto, revealing the brand new gimbal design on the BAT 60 radio. We didn't just copy existing designs, our German engineers even designed a completely new mechanically solution that matches the philosophy of the company perfectly.
From now on weatronic users will have the possibility and the opportunity to implemented stick behaviors and characteristics which simply didn't existed until now.
Here are the facts:
- Best Quality "Made in Germany"
- nine ball bearings sticks
- wear-free thanks to hall sensors
- adjustable reseting force characteristics of each stick axis individually
- innovative gas-brake handle adjustment
- reseting forces can be set by a spring in 8 steps from soft to hard
Again, like the "function" concept instead of the old "channel" thinking, the mechanics suites just fine to the pilot's demands. The characteristic of each axis is controlled by small plastic discs ("slices") which can be changed very easy and user friendly by only one screw.

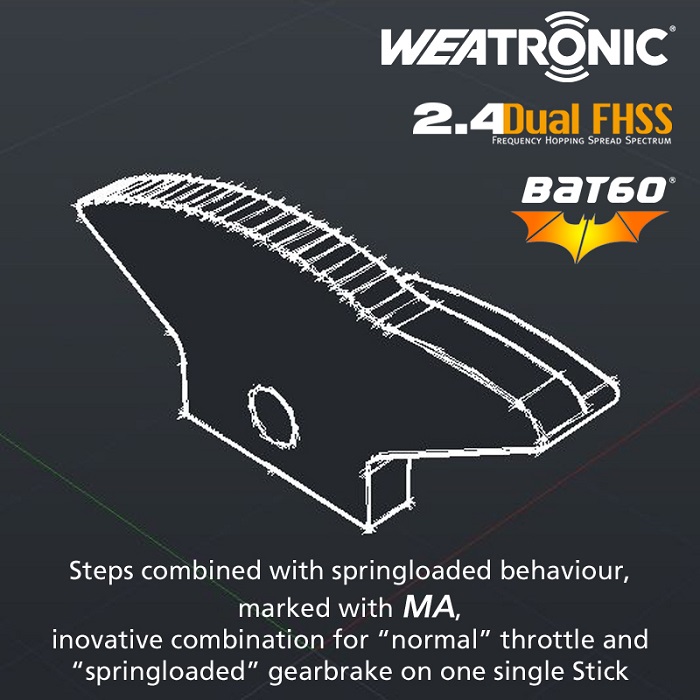

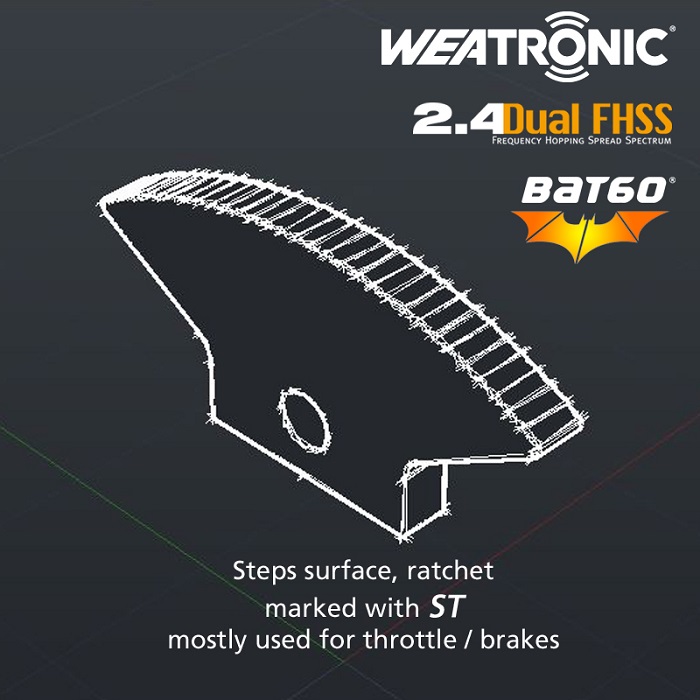

There are 8 different behaviors available, for example a smooth slide, a ratchet, with or without a center marking or a combination which then results to an completely new gas-brake concept.
Different stick lengths and of course switches or/and encoder functions on the top of the sticks will be available.

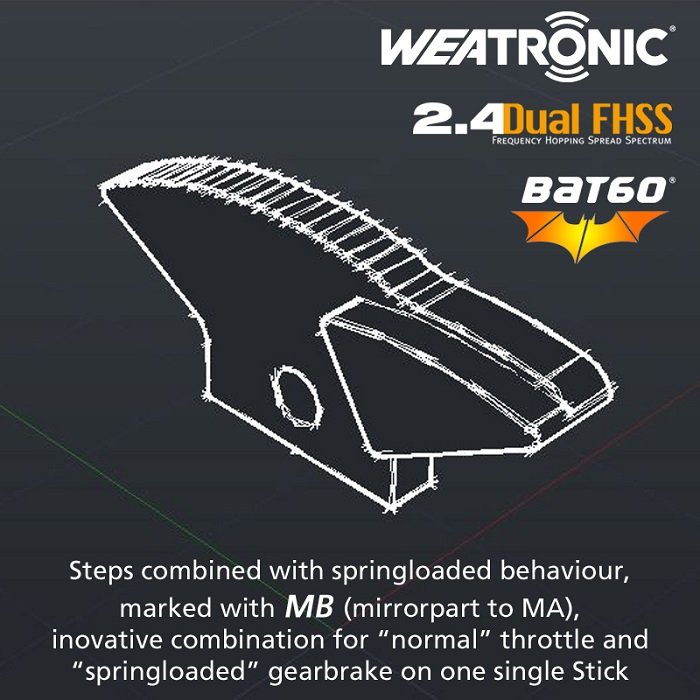

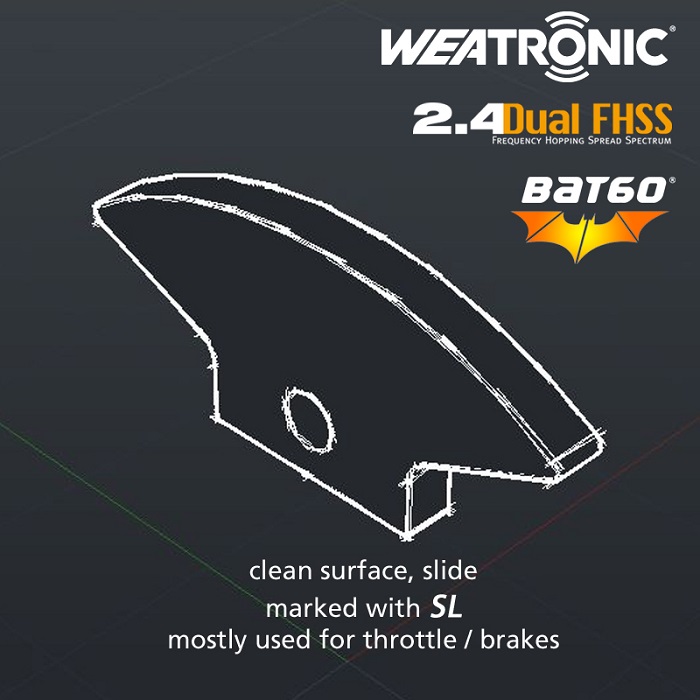

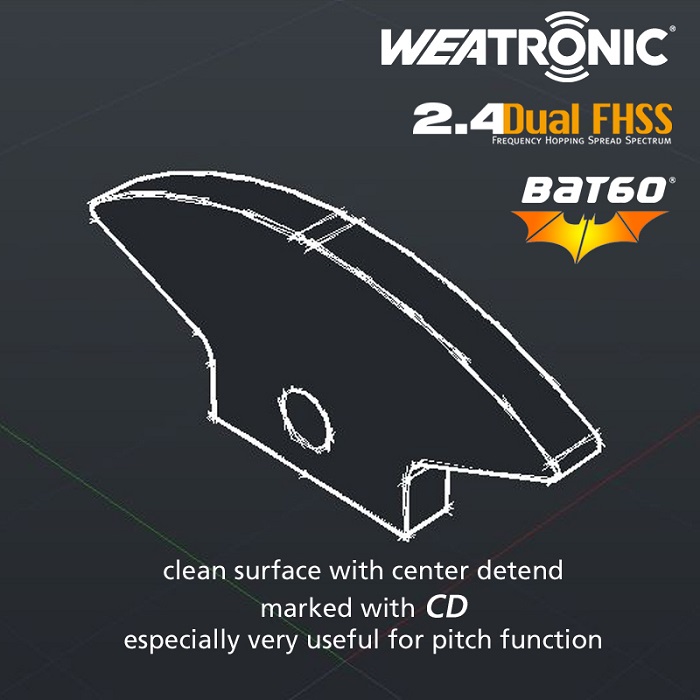

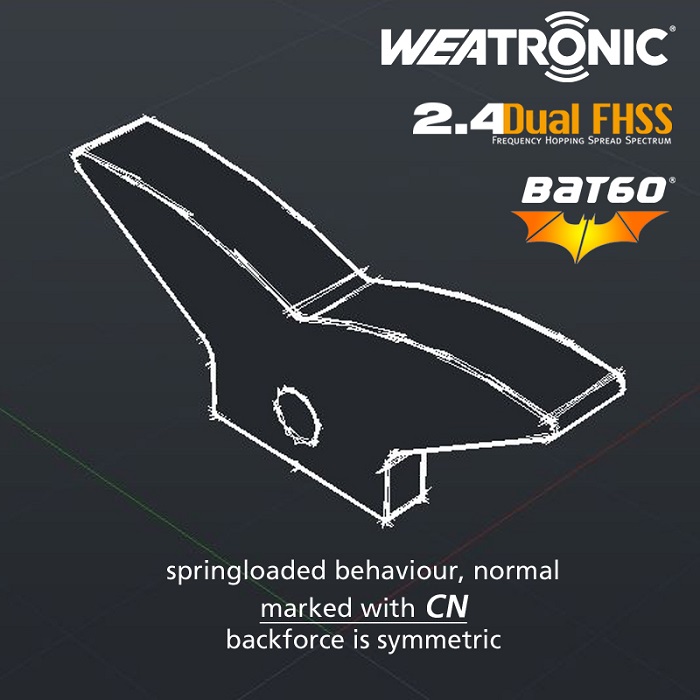

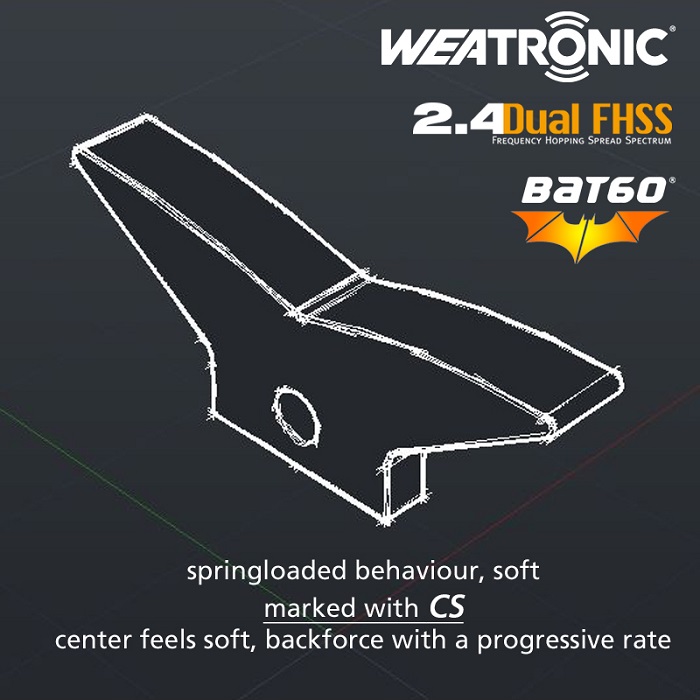

"Feedback parts"
Here is an overview about the possible characteristics and about the different feedback parts.
