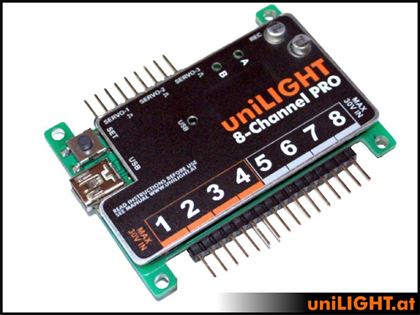

UniLight Controller 8-Channel PRO

The system for all tasks!

The 8-Channel Module offers universal use for all lighting tasks in functional model-making. Up to 8 electrical- and lighting circuits can be implemented and thereby, two different operating voltages can be used. Via a Windows PC, you can program the module with our software per USB. For each channel five freely programmable light sequences are programmable, which can be selected via servo travel from -100% to +100%. Additionally, the speed of the light effect can be configured on the module depending on personal taste and on the scale of the model.

Technical data

• Control side receiver 4.8-9.6V
• Only ca. 18g (without cable)
• Dimension: 50x60x8mm
• Light signals 8 Channels with 3A to 30V, pulse load up to 5A
• Total load up to 2x5A
• Galvanically isolated circuits
• Operation possible without RC signal
• Smooth shifting programmable
• Freely programmable effects sequences
• 2 programmable servo outputs for landing lights, undercarriage or fireworks
• 2 permanent and 5 freely programmable light sequences for selection, all with variable speed
• Freely available Windows configuration software
• Assistence function for production of standard light signals
• Storing and exchanging of profiles
