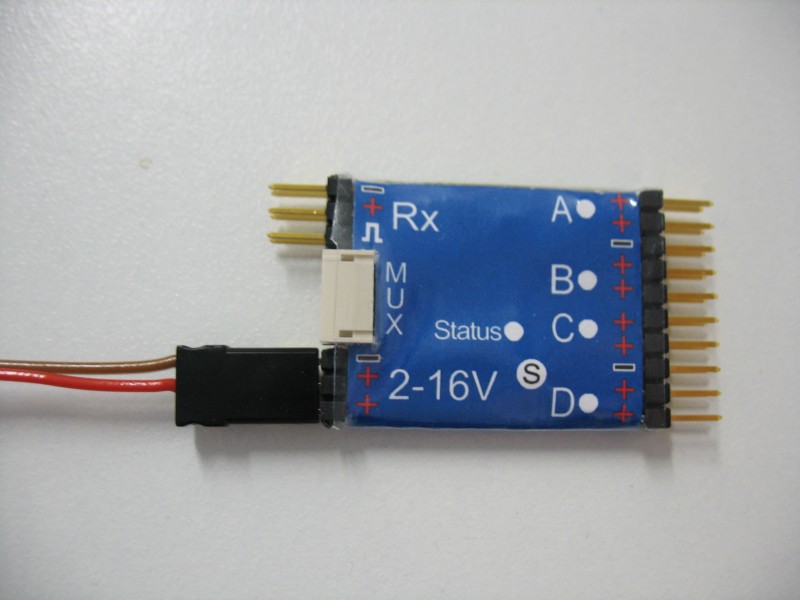

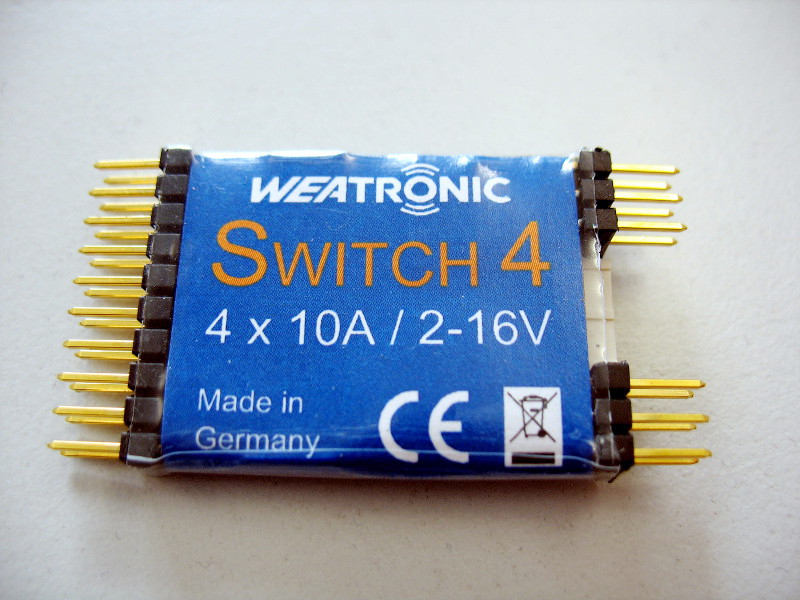

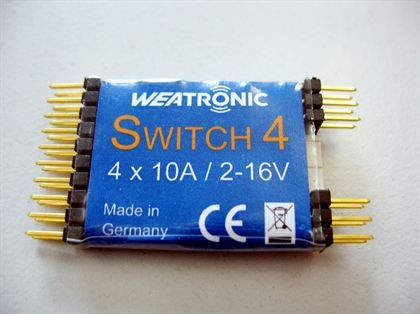

Switch 4 Switch Module

Switch 4 Switch Module

With the 4-way switch component the opportunity to switch 4 independent outputs is given.
The 4 outputs of the Switch 4 are driven by a servo output.
It is also possible to increase the output of the MUX box Weatronic.

- 4 outputs up to 10 A (continuous) stress.
- For the first time "plus" connected, characterized in simplified circuit model
- Connection to any power outlet
- Direct connection to the MUX box
- Programmable
- 15 pre-programmed flashing / switching modes
- Short circuit protected
- Overheating protection
- Updatable

Specifications:
Voltage range: 2-16 volts
Power consumption: 15 - 40 mA, depending on the switching state
Current load per output: max. 10A (15A for short periods)
Total current: max. 20A
Temperature range: -10 - +60 degrees Celsius
Over-temperature protection: 90 ° C
Weight: 20g
