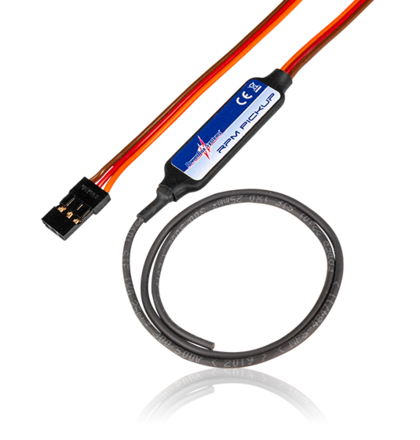

PBS-RPM - rotational speed sensor

The PBS-RPM is a rotational speed (rev-count) sensor which is easy to install. It is designed to work with the PowerBox CORE, but is also suitable for use with other telemetry systems!

Manufacturer part number: 6623

Availability: 1 in stock

Manufacturer: Powerbox Systems

£35.35

Qty:

Installation is quick and simple: the sensor lead attached to the PBS-RPM is simply wound round one of the ignition system’s high-voltage leads. The field strength of the high voltage is sufficient to supply accurate rotational speed information to the sensitive detector in the PBS-RPM. The unit can be used with all types of engine - two-stroke and four-stroke.

The PBS-RPM is Plug’n’Play for the CORE telemetry system, but can also be switched for use with Jeti, M-Link and HoTT using the PowerBox Terminal program.

Features

Rotational speed up to 10,000 rpm
Ultra-simple to install
Accurate rev-count detection
For two-stroke and four-stroke engines
Compact design
Low weight
Supports the following telemetry systems: PowerBox Core P²BUS, Jeti EX-Bus, Multiplex M-Link, Graupner HoTT, Futaba

Technical Data

Operating voltage	4.0V - 9.0V
Current drain Power-on state	max. 20mA
Supported RC systems	PowerBox, Jeti, Multiplex, Graupner, Futaba
Dimensions	40 x 10 x 4 mm
Weight	5g
Temperature range	-30°C to +85°C
