PBS-P16 - Pressure sensor

The PBS-P16 is an ultra-precise pressure sensor for up to 16 Bar. It is designed to work with the PowerBox CORE, but is also suitable for use with other telemetry systems.

Manufacturer part number: 6622

Availability: 1 in stock

Manufacturer: Powerbox Systems

£85.00

Qty:

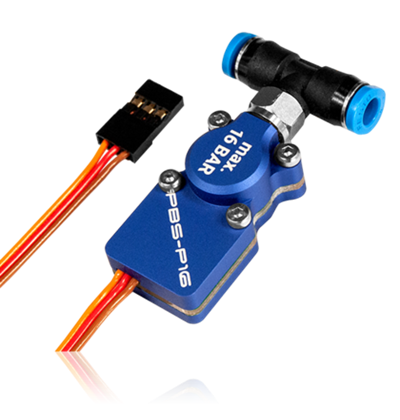

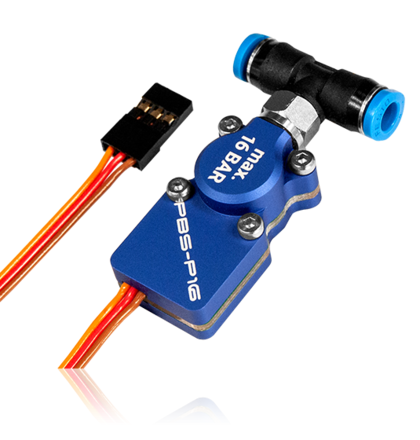

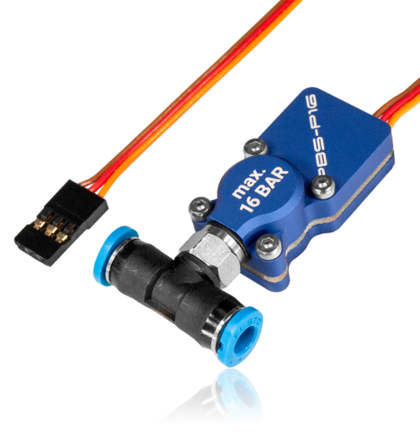

The robust aluminium case is machined from solid, and contains a small pressure chamber fitted with a digital Mems pressure sensor. The Festo T-connector is simply installed in the existing 4 mm pressure line to the pressure tank. Other pressure hose connections can easily be screwed into the PBS-P16's M5 threaded socket.

The PBS-P16 is Plug'n'Play for the CORE telemetry system, but can also be switched for use with Jeti, Futaba*, M-Link and HoTT using the PowerBox Terminal program.

*Futaba will display the pressure value as a temperature as the system cannot show pressure values

Features

Pressure measurement up to 16 Bar (230 psi)
Compact design
Low weight
Supports the following telemetry systems: PowerBox CORE P²BUS, Jeti EX-Bus, Multiplex M-Link, Graupner HoTT, Futaba

Technical Data

Operating voltage	4.0V - 9.0V
Current drain Power-on state	max. 20mA
Supported RC systems	PowerBox, Jeti, Multiplex, Graupner, Futaba
Dimensions	31 x 17 x 12 mm
Weight	14g
Temperature range	-30°C to +85°C
