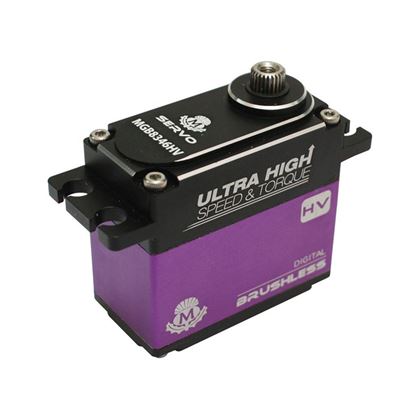

Macgregor MGB8346HV 45.5Kg/0.10s Brushless High Voltage Servo
The MGB8346HV is a programmable waterproof ultra high speed and torque brushless digital servo, part of MacGregor's range of high voltage servos designed for General use in RC Aeroplanes, Cars & Helicopters.
Manufacturer part number: MGB8346HV
Availability: 2 in stock
Features:
- High Performance, Standard Size, Multi Voltage Digital Servo
- High-Precision Steel Gears
- Full CNC Aluminium Case with Anodised Purple Centre Case
- High Quality Brushless Motor
- Dual Ball Bearing
- Long Working Life
- 25T (Futabe Type) Spline
- JR style plug and lead (300mm)
- Waterproof IPX8 Grade
- 4096 Resolution
- Programmable
Product Description:
The MGB8346HV is a programmable waterproof ultra high speed and torque brushless digital servo, part of MacGregor's range of high voltage servos designed for General use in RC Aeroplanes, Cars & Helicopters.
MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.
Specifications:
Dead band: |
2µs |
Working frequency: |
1520µs / 330hz |
Motor: |
Brushless Motor |
Gearset: |
Steel |
Spline: |
25T |
Operating Voltage: |
5.0 ~ 8.4V |
Operating Speed (5.0V): |
0.17sec/60° |
Operating Speed (6.0V): |
0.14sec/60° |
Operating Speed (7.4V): |
0.11sec/60° |
Operating Speed (8.4V): |
0.10sec/60° |
Stall Torque (5.0V): |
26kg.cm |
Stall Torque (6.0V): |
32kg.cm |
Stall Torque (7.4V): |
40kg.cm |
Stall Torque (8.4V): |
45.5kg.cm |
Dimensions: |
40.6 x 21 x 37.6mm |
Weight: |
83.7g |
Connector Wire Length: |
JR 300mm |
Bearing: |
2BB |
