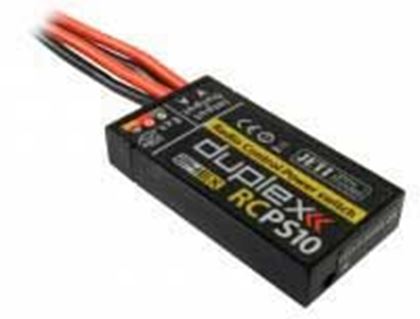

RCPS10 - RC Power Switch 10A is a wireless switch equipped with a power circuitry that allows direct connection to receiver battery. RC Power Switch can be easily controlled using DC/DS transmitters and it can be simply used as a replacement of a standard mechanical switch.
Switching is indicated by a red LED that is visible through the opening on the side of the RC Switch.
Specifications
Weight [g] 5
Dimensions [mm] 38 x 7 x 20
Sustained current [A] 10
Operational temperature [°C] -20 ... 85
Average Current [mA] 20
Recommended input voltage [V] 3,3 ... 24
Idle current [µA] 80
There is an update for the RCPS10 you can download it HERE which improves the sensitiviy when switching on and off
For more information, please visit this products webpage.
