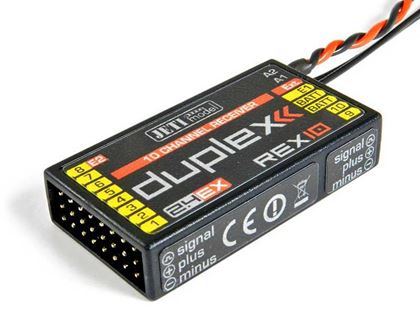

DUPLEX 2.4EX receiver REX 10
To update this receiver or sensors you will need a Jeti USB adaptor
- Internal memory for data logging and control signals
- Integrated expander for up to 3 sensors
- Supported protocols: PPM, EXBUS, EX, UDI
- programmable functions of slots
- support the direct inputs
- compact dimensions
- 32 bit processor
- full range
- programmable via the Jeti Duplex and wirelessly via the DC / DS transmitter
- Antenna with "balun" to increase the input sensitivity (see picture)
Specifications:
Weight [g] 16
Dimensions [mm] 51 x 28 x 11
channels 10
telemetry Yes
Temperature [° C] -10 ... 85
compatible protocols DUPLEX 2.4GHz EX, EX bus, UDI
antenna length [mm] 2 x 200
Voltage range [V] 3.2 to 8.4
Current consumption [mA] 30
satellite receiver connection Yes
Output power [dBm] 15
Receiver sensitivity [dBm] -106
