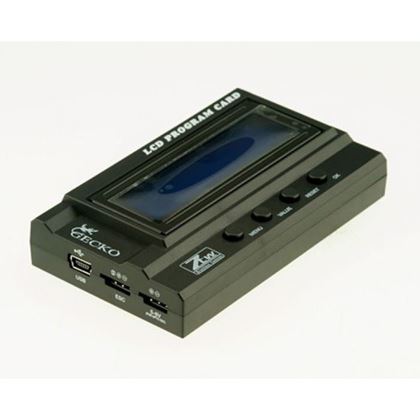

Gecko Program Card

Can be used to program all ZTW Gecko Series brushless ESCs quickly and easily. Note: ONLY compatible with ZTW Gecko Series ESCs. Cannot be used to program ZTW A-series, B-series, or Mantis Series ESCs.

• Easily set programming parameters without the use of your transmitter
• Parameters are displayed on the LCD screen for ease of use
• Includes USB PC interface for data logging & updating ESC firmware

Programmable Options:

• Brake setting (off / soft / mid / hard -- default: off)
• Battery type: (Ni-XX / LiPo / LiFe -- default: LiPo auto detect)
• Cut-off voltage threshold (2.8V 50% / 3.0V 60% / 3.2V 65% / No protection -- default: 3.0V 60%)
• Factory default setup reset
• Timing settings (auto / 2° / 8° / 15° / 22° / 30° -- default: auto)
• SBEC Voltage Output (5.0v / 6.0v / 7.4v / 8.4v -- default: 5.0v)
• Governor mode: (RPM off / 1st Soft Start / 2nd Soft Start / Gov Mode 1 / Gov Mode 2 -- default: RPM off)
• Motor rotation: (forward / reverse -- default: forward)
• Start up (Low / Mid / High-- default: 30%)
• LVC cut-off type: (reduce gradually / cut-off -- default: reduce gradually)
