Key Features
- ABC piston and liner.
- Powerful 7.45cc single cylinder two-stroke.
- 2,000 to 17,000rpm range.
- Schnuerle ported cylinder and liner.
- 10 x 6 to 12 x 5" propeller range.
- Uses glow fuel with between 5 and 15% nitromethane.
- Twin bearings.
- Twin needle carb with rear mounted main needle.
What's in the Box

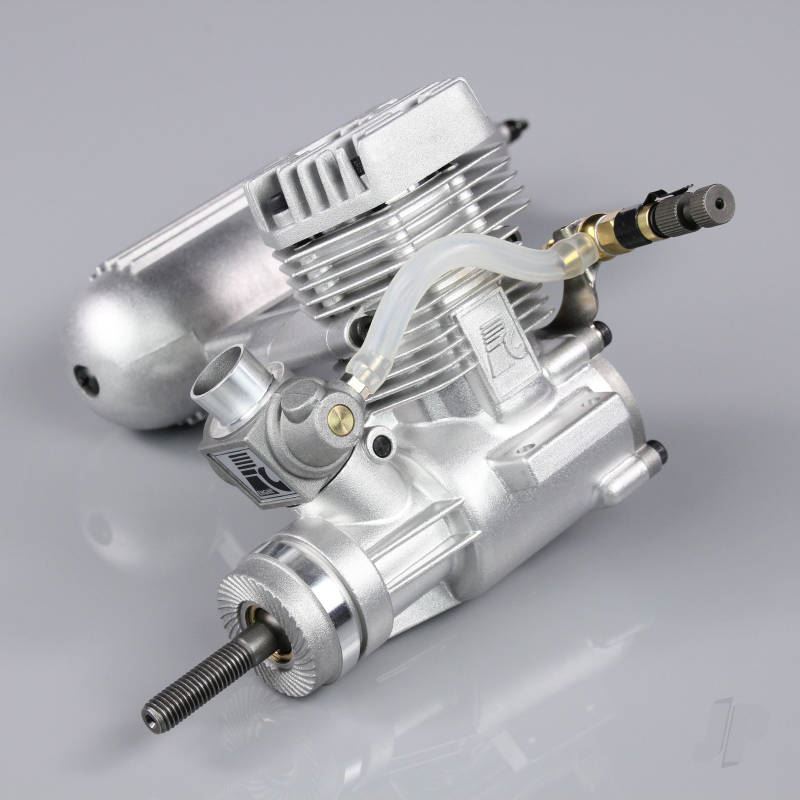

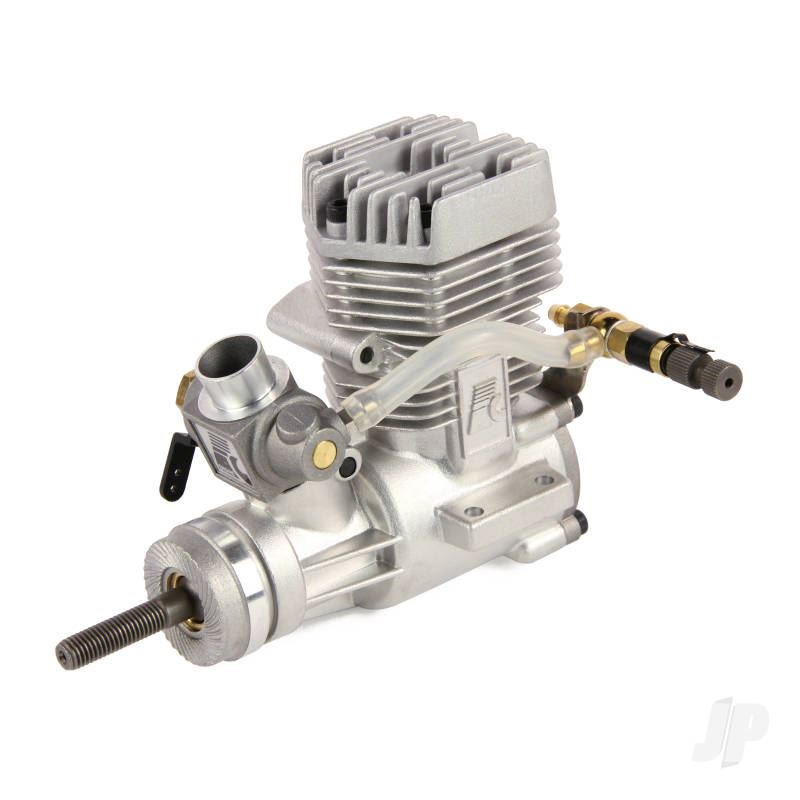

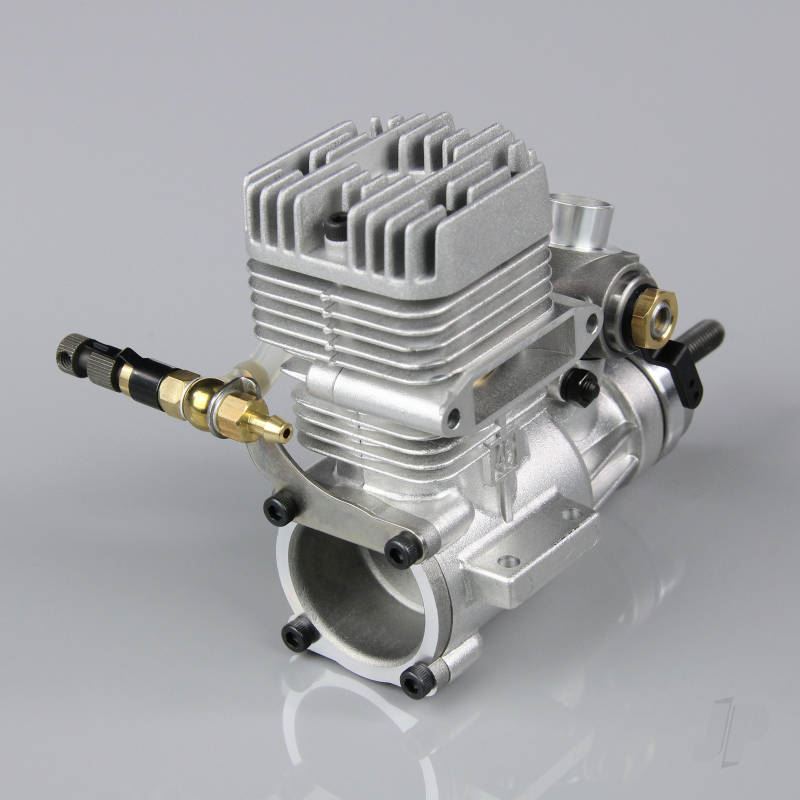

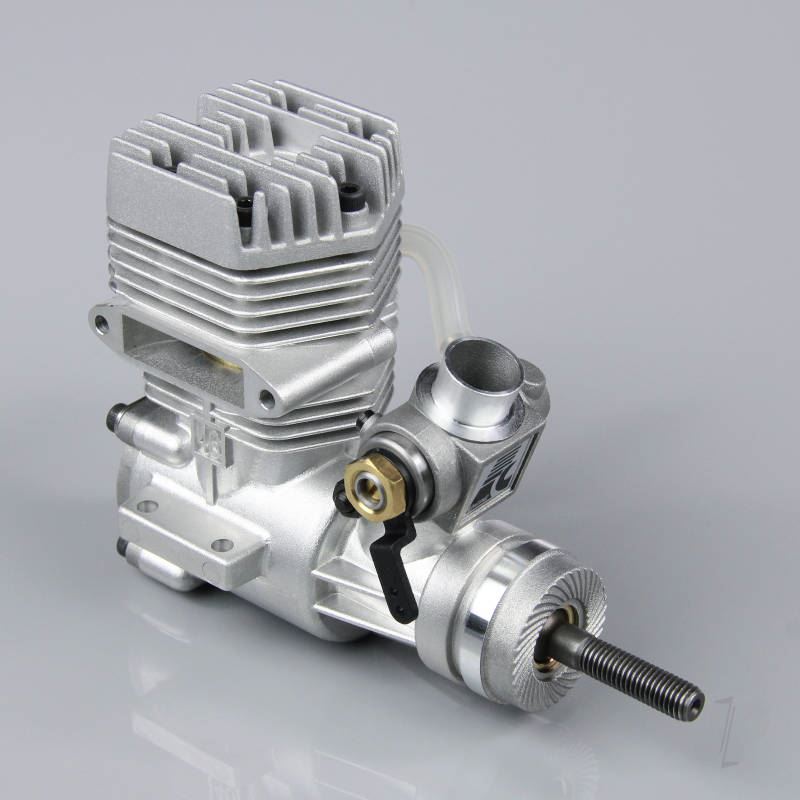

- 1x Force 46 ABC aero engine.

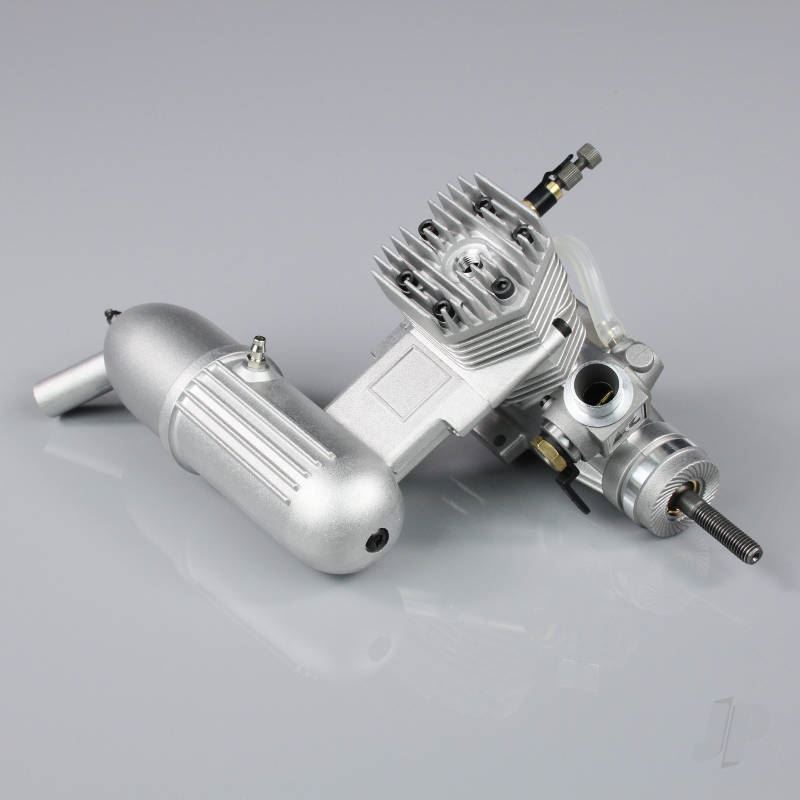

- 1x Torpedo silencer with pressure nipple.
- 1x Silencer gasket.
- 1x Instruction and operating sheet.
- 2x Silencer mounting screws.
- 1x Propeller driver.
- 1x Prop nut and washer.
Product Description
R/C flyers adore engines, and whilst the notion that electric flight will eventually rule the aeromodelling world may predominate, two-strokes are still the preferred choice for many, particularly in the quality mid-range club sector where, of course, the ubiquitous .46 – .53 two-stroke has so many uses. Well, as luck would have it, recent demand has encouraged Force Engines to step up and produce this beautifully-made single-cylinder, front induction, schnuerle ported, ABC, R/C glow engine.
Sporting a crisp and clean, bead blasted crankcase, robust one-piece crankshaft – supported on a front (sealed) and rear (open) bearing – the Force 46 offers reassuring longevity with its aluminium alloy piston and hard chrome-plated brass liner, the latter schnuerle ported for improved efficiency and power. Add a proven twin needle carburettor, substantial high-volume silencer, cast high-grip knurled prop driver and rpm range of 2,000 to 17,000 and you have a perfect, and rather eye-catching R/C sport aero engine for a variety of propeller sizes in the popular 10 x 6 to 12 x 5” bracket.
Easy to start, easy to tune and promising years of reliable service the Force 46 is more than a match for your Sunday hack or sport aerobat and it won’t break the bank.
Specification:
| Displacement (cc): |
7.45 |
| Bore (mm): |
22 |
| Stroke (mm): |
19.6 |
| Weight (g): |
371.5 |
| Fuel: |
Glow |
| Nitro content: |
5 – 15%
|
