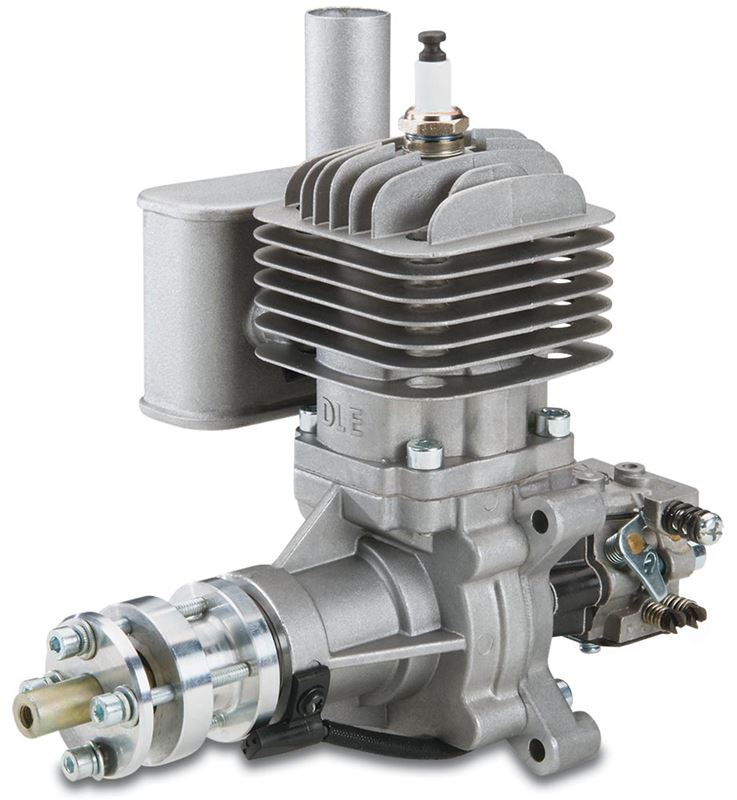

DLE-30 Gasoline Engine

Convenience and power for quarter scale!

With the DLE-30, you get the economy of a gasoline engine in the size of a glow engine.

Electronic ignition provides the spark for fast starting. Timing automatically adjusts for peak power throughout the rpm range. And a made-for-flight design ensures the best power-to-weight ratio for performance.

A rear-mounted pumper carb ensures easier installs and smooth idling before you fly — and dependable fuel flow while you are flying.

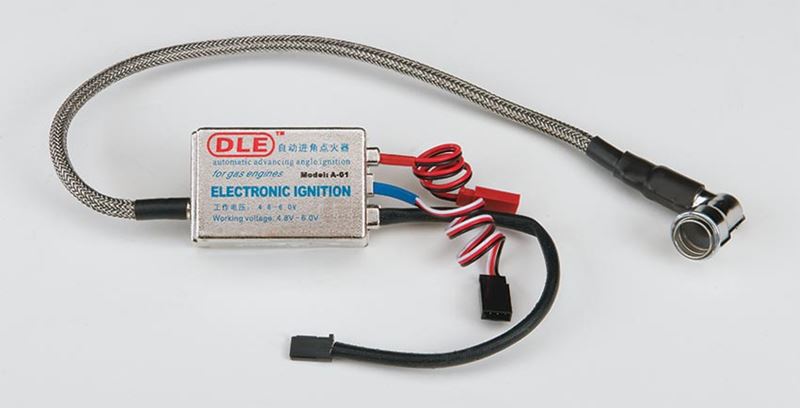

DLE electronic ignition
Electronic ignition is the no-hassle answer to simpler starts, higher performance and minimal RF noise.

Loaded with "extras!"

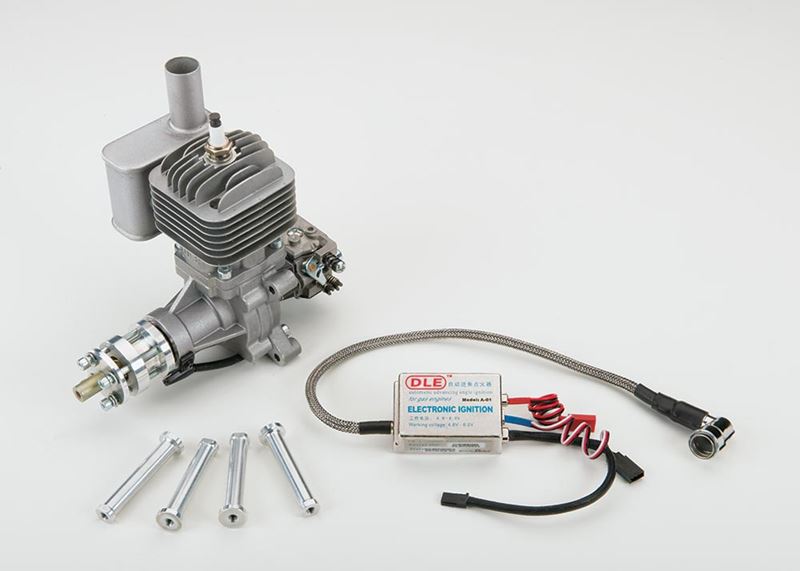

With DLE, accessories are an added value instead of an extra cost. The DLE-30 package includes electronic ignition, a muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & manual.

Specifications:

• Stock Number: DLEG0031
• Displacement: 30.5 cc (1.861 cu in)
• Bore: 1.42 in (36 mm)
• Stroke: 1.18 in (30 mm)
• Weight: 2.4 lb (1.10 kg)
• RPM Range: 1,600-8,500
• Output: 3.7 hp @ 8,500 rpm
• Requires: unleaded gasoline, oil, ignition battery & propeller
• Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & manual
• Suggested Propellers: 18x8, 18x10, 19x8 & 20x8
• Suggested Break-in Prop: 18x8

Technical Data:

• Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPopack (Voltage regulator required with LiPo or LiFe use.)
• Compression Ratio: 7.6:1
• Gasoline/Oil Mix: 30:1
• Replacement Spark Plug: DLEG3526
• Weight Breakdown: Engine: 32.1 oz (910 g); Muffler: 2.1 oz (60 g); Ignition: 4.2 oz (120g)
