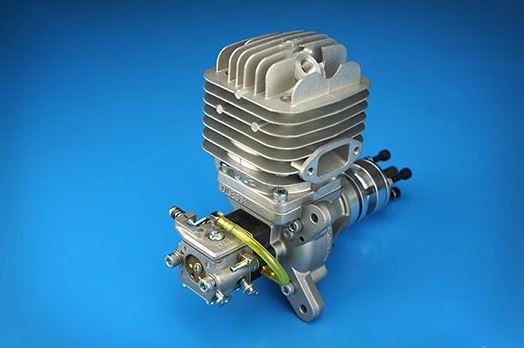

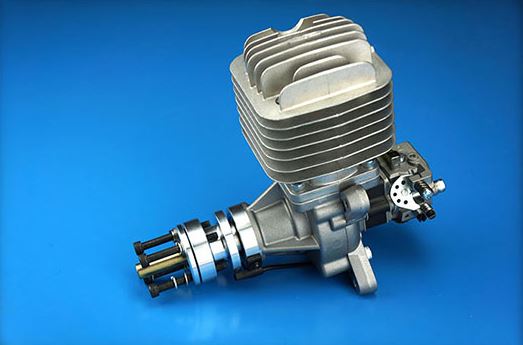

DLE-55 Two-Stroke Petrol Engine

The DLE-55 is an aircraft engine, which combines excellent quality at a very reasonable price. The exceptionally powerful DLE-55 is very well suited to medium sized scale aircraft.

DLE provide very good after sales support and should any spares be required they are readily available.

Specifications:

• Performance: 5.2HP/7500rpm
• Idle Speed: 1350 rpm/min, 13.6Kg Static Thrust/ 100 meters Altitude, 11.5Kg Static Thrust/ 1800 meters Altitude
• Recommended Prop: 22 X 8; 22x10; 23x8
• Ignition Module: 4.8v - 6v.

Technical Data:

• Cubic Capacity: 50.8cm3
• Diameter x stroke: 43mm x 35mm
• Compression Ratio: 7.5:1
• Fuel Oil Ratio: 30:1

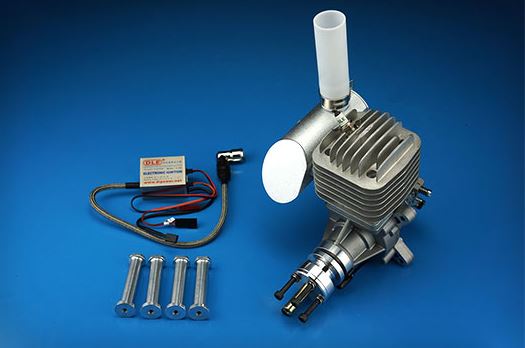

• Weight Breakdown: Main Engine - 1350g; Muffler - 180g; ignition device - 120g
