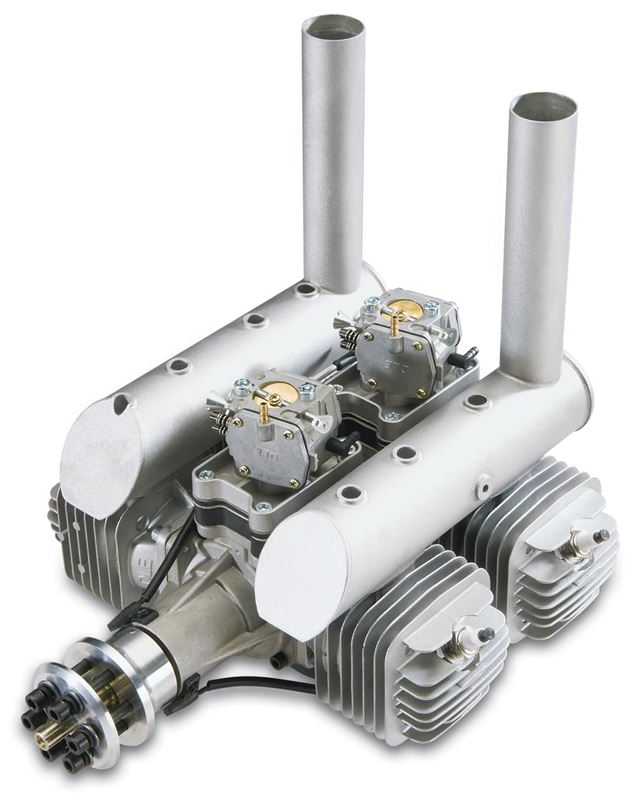

DLE-222 Flat Four Gasoline Engine

At 21.5 horsepower, the DLE-222 has more than enough power to push your plane through the air. And with an all-up weight of just over twelve pounds, it has the power-to-weight balance to make the most of it. Dual carbs help you fine tune it, sealed bearings keep it running smoothly and two mufflers keep it down to a dull roar. And for all you get — including mufflers, mount, standoffs and a 6-bolt prop hub — the value-to-price ratio is impressive, too.

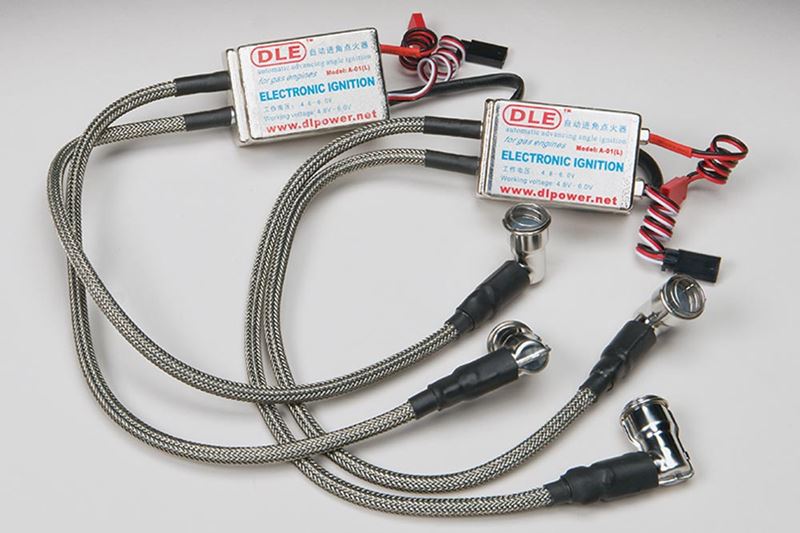

DLE electronic ignition

Electronic ignition is the no-hassle answer to simpler starts, higher performance and minimal RF noise.

Loaded with "extras!"

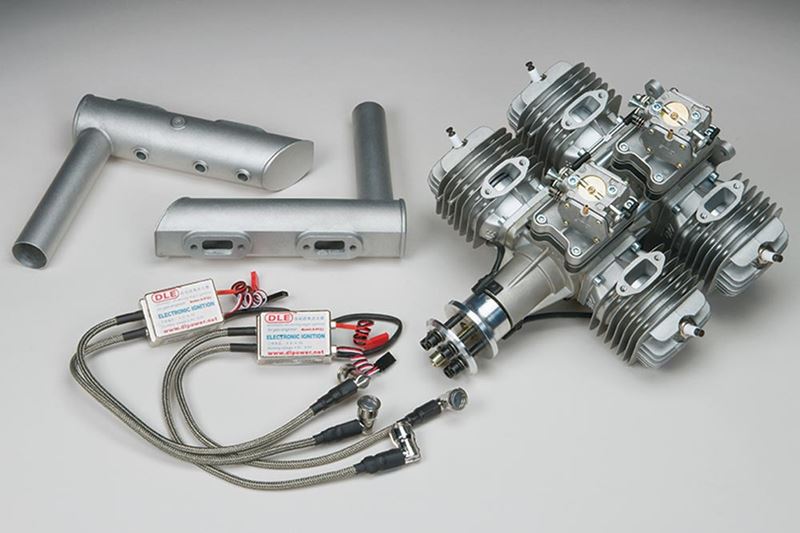

With DLE, accessories are an added value instead of an extra cost. The DLE-222 package includes 2 mufflers, 4 spark plugs, gaskets, bolts, machined aluminum standoffs, a throttle arm extension, mount and mounting template.

Specifications:

• Stock Number: DLEG0222
• Displacement: 13.6 cu in (222.5 cc)
• Bore: 1.77 in (45 mm)
• Stroke: 1.38 in (35 mm)
• Weight: 12.37 lb (5.61 kg)
• RPM Range: 1,000-7,500
• Output: 21.5 hp @ 7,500 rpm
• Requires: Gasoline, oil, two ignition batteries & propeller
• Includes: dual electronic ignition, 2 mufflers, 4 spark plugs, gaskets, bolts, machined aluminum standoffs, 6-bolt prop hub, throttle arm extension, mount & mounting template
• Suggested Propellers: 32x10, 32x12 & 34x10

Technical Data:

• Ignition Battery: two 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo Packs (Voltage regulator required with LiPo or LiFe use.)
• Compression Ratio: 7.6:1
• Gasoline/Oil Mix: 30:1
• Replacement Spark Plug: DLEG2226
