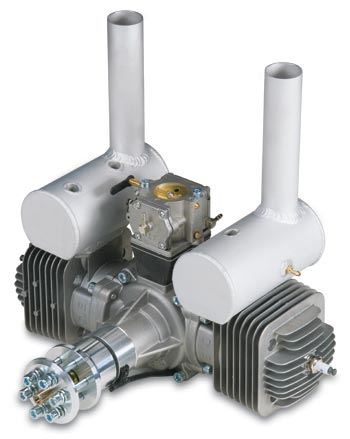

DLE-170 Twin Gasoline Engine

Electronic ignition is the no-hassle answer to simpler starts, higher performance and minimal RF noise.

Loaded with "extras!"

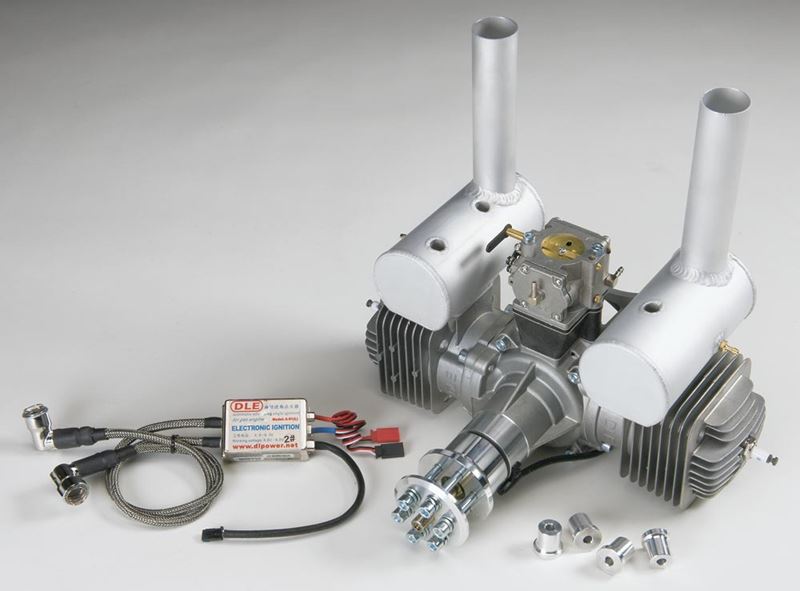

With DLE, accessories are an added value instead of an extra cost. The DLE-170 package includes electronic ignition, mufflers, spark plugs, gaskets, bolts, machined aluminum standoffs, a throttle arm extension, mount and a mounting template.

Features:

• Three crank bearings, simple design for lighter weight
• Double V-type reed valves, bottom induction

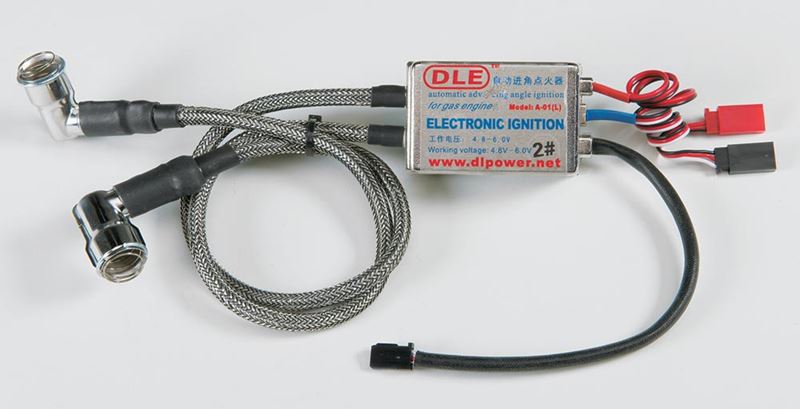

• Automatic electronic ignition
• Customized carburetor
• Special aluminum alloy crankcase
• Advanced CNC machining
• High quality sealed bearings
• Horizontally opposed twin cylinders for low vibration
• High power-to-weight ratio
• Includes mufflers, mount and standoffs

Specifications:

• Stock Number: DLEG0170
• Displacement: 170 cc (10.37 cu in)
• Bore: 2.05 in (52 mm)
• Stroke: 1.57 in (40 mm)
• Weight: 9.06 lb. (4.11 kg)
• RPM Range: 1,100-7,500
• Output: 17.5 hp @ 7500 rpm
• Requires: Gasoline, oil, ignition battery & propeller
• Includes: electronic ignition, mufflers, spark plugs, gaskets, bolts, machined aluminum standoffs, 6-bolt prop hub, throttle arm extension, mount & mounting template
• Suggested Propellers: 30x12 & 32x10

Technical Data:

• Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (Voltage regulator required for LiFe or LiPo use.)
• Compression Ratio: 9.5:1
• Gasoline/Oil Mix: 30:1
• Replacement Spark Plug: DLEG1826
• Weights (individual): Engine: 7.83 lb (3.55 kg); Exhaust (2): 7.05 oz (200 g); Ignition: 5.64 oz (160 g)
