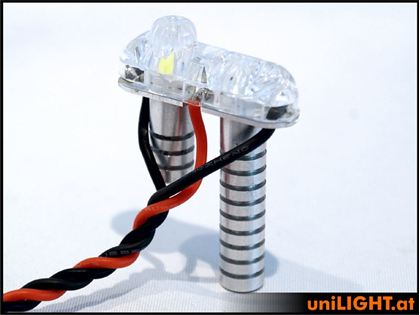

8W Navigation & Strobe, 8mm - Red and White

Powerful position and flash light in a small housing. The profile light of the 8mm series is slim outside and fits optically also onto smallest models. Due to efficient LED emitter, the light has an enormous luminous power despite the compact dimension. The special aluminium core PCBs with CNC manufactured heatsinks enable smallest dimensions with an unique slim design.

In delivery state, the polycarbonate spreading cap is simply attached. It can be varnished separately. It's highly transparent and unbreakable.
If desired, you can recess the luminaire up to 3mm, thus achieving an even smaller construction. The cap must be glued after the final assembly.

The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be used. Alternatively you can use a 4W-3S adaption cable. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Please check operation temperatures after installation.

Technical Data

Electricity: 4W RED and 4W WHITE reference power, 8(12)V, 0.35A
Beam angle: >160°
Light intensity: ~50 Lumen RED
Light intensity: ~70 Lumen GREEN
Light intensity: ~130 Lumen WHITE
Dimension assembly pin: D7x14mm and D7x29mm
Dimension light cap: 8x30x8mm, up to 4mm lowerable without loss of beam angle
Weight: 6g (without cable)
Delivery: ready to use with 1m silicon cable and series resistor for 2S operation, resistor for 3S enclosed
