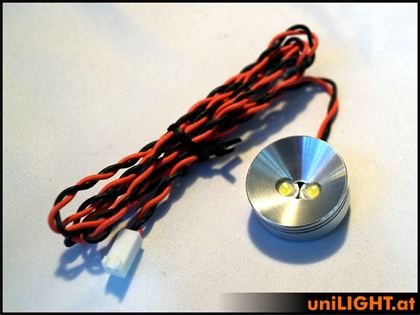

4Wx2 Aluminium Spotlight, 30mm

This innovative 30mm category spotlight is suitable for all larger models and provides, on the basis of its enormous light power and wide angle beam, maximum visibility under all conditions.

Ideal in tiptanks, hood or also as landing light in big high-winger. Due to the short construction, they are perfectly suitable for fuselage nose and drop down spotlight.

Direct operation with 2S LiPo (8V). With 3S (12V), the additional enclosed resistor has to be soldered in or use a 4W adaption cable (accessories). The reflector operates as heatsink, which means permanente operation is possible - provided that air circulation is available (at flight). If this is not the case, a duty cycle of 5-10minuntes should not be exceeded. Please check operating temperatures after installation!

• High-quality aluminium reflector
• Wide angle beam: 100°
• Completely made of massive aluminium, CNC manufactured
• Extremely short construction
• x2-technology for doubling light intensity
• Available in WHITE and WARMWHITE

Technical data

Performance: 2x4W reference power
Voltage: 8V, use enclosed resistor additionally for 12V!
Electricity: 0.35A
Beam angle: ~100°
Light intensity: 100x2Lumen WHITE
Light intensity: 95x2Lumen WARMWHITE
Dimension: D30x12mm
Weight: 15g (without cable)
Delivery: ready to use with 1m connection cable and additional resistor for 3S operation
