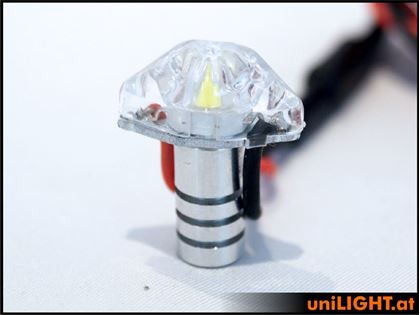

4W Flashlight, SHORT, 8mm - White
The short version of the miniature high-performance light with 4W reference power for smaller models, on tail fins, thin wings or also on styrofoam models.
Manufacturer part number: MINIX-040-WE
Availability: Out of stock
The short version of the miniature high-performance light with 4W reference power for smaller models, on tail fins, thin wings or also on styrofoam models. The mini luminaire is delivered as a ready assembled unit on a CNC manufactured aluminium heatsink and an enclosed polycarbonate cap as covering. The cap is especially designed to scatter light for better visibility. It has to be glued on during installation.
Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. Please check operation temperatures after installation.
Technical Data
- Electricity: 4W reference power, 8(12)V, 0.35A
- Beam angle: >160°
- Light intensity: ~50 Lumen RED
- Light intensity: 100 Lumen WHITE
- Dimension cap: 8x18x9
- Dimension cooling pin: D7x14
- Weight: 2.5g (without cable)
- Delivery: ready to use with 1m silicon cable and ready made series resistor for 2S, resistor for 3S enclosed
