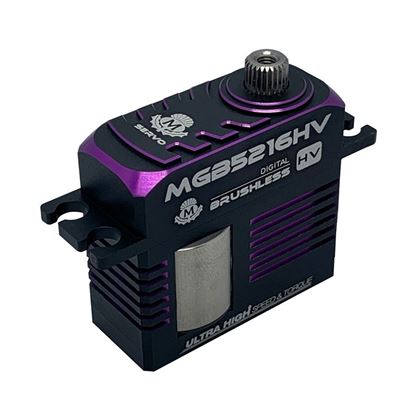

MGB5216HV 16.0kg/0.08s Brushless High Voltage Servo
The MGB5216HV is a ultra high speed and torque brushless midi digital servo, part of MacGregor's range of high voltage servos designed for General use in RC Jets, Aeroplanes, Cars & Helicopters.
Manufacturer part number: MGB5216HV
Availability: 10 in stock
Features:
- High performance digital mini servo
- High-precision steel gear
- High quality brushless motor
- Full CNC aluminium hulls and structure
- Dual ball bearings
- Super long life
- 25T (Futaba Type) Spline
- JR style plug
Product Description:
The MGB5216HV is a ultra high speed and torque brushless midi digital servo, part of MacGregor's range of high voltage servos designed for General use in RC Jets, Aeroplanes, Cars & Helicopters.
MacGregor's HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.
Specifications:
| Dead band: |
2µs default |
|---|
| Working frequency: |
1520µs / 330hz |
|---|
| Motor: |
Brushless Motor |
|---|
| Gearset: |
Steel |
|---|
| Spline: |
25T |
|---|
| Operating Voltage: |
5.0 ~ 8.4V |
|---|
| Operating Speed (5.0V): |
0.14sec/60° |
|---|
| Operating Speed (6.0V): |
0.11sec/60° |
|---|
| Operating Speed (7.4V): |
0.09sec/60° |
|---|
| Operating Speed (8.4V): |
0.08sec/60° |
|---|
| Torque (5.0V): |
10.5kg.cm |
|---|
| Torque (6.0V): |
11.5kg.cm |
|---|
| Torque (7.4V): |
15.0kg.cm |
|---|
| Torque (8.4V): |
16.0kg.cm |
|---|
| Dimensions: |
36 x 15 x 33mm |
|---|
| Weight: |
52g |
|---|
| Connector Wire Length: |
220mm |
|---|
| Bearing: |
2BB |
|---|
