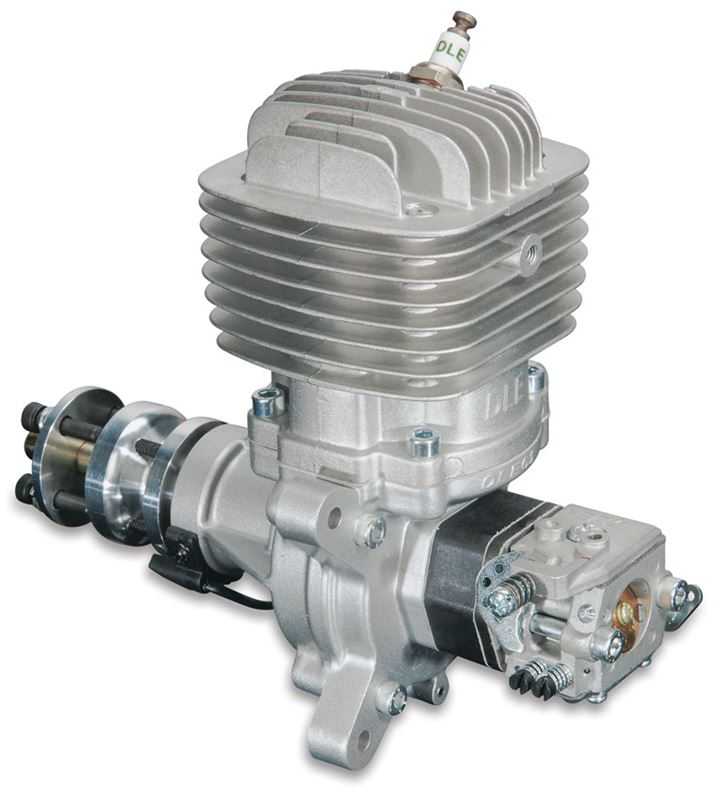

Innovation is excellence; so, when DLE added innovations that included improved crankshaft bearings, and a better piston/cylinder fit to their engines, serious R/C pilots got very excited. The DLE-61 less than four pounds and cranks out over six horsepower from a durable and long-lasting engine.
Extras like an airplane-specific carburetor, muffler, standoffs and electronic ignition boost performance even further. It's a solid 60cc engine at the best price you'll find.
Features:
- Efficient, light design for high power-to-weight ratio
- Light piston for fast acceleration, excellent compression and low vibration
- CNC-machined parts for high performance and long life
- Enlarged crankshaft bearings
- Increased piston/cylinder contact area
- Two petal reed valve
- Muffler included for optimized power
- Spark plug
- Spiral wire wrap
Loaded with performance and value.
DLE Engines offer more for the money, with standard features that include electronic ignition, muffler(s), spark plugs and more.

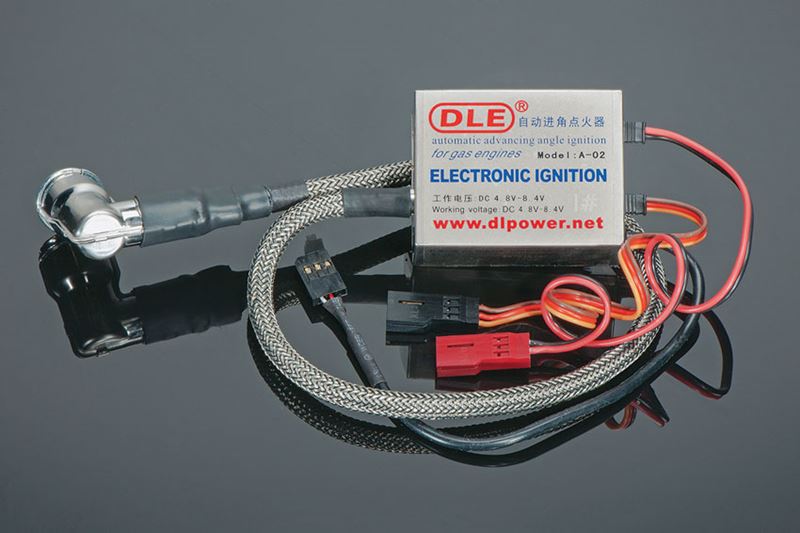

DLE electronic ignition means faster first-time starts, smooth idling and superb throttle transition.

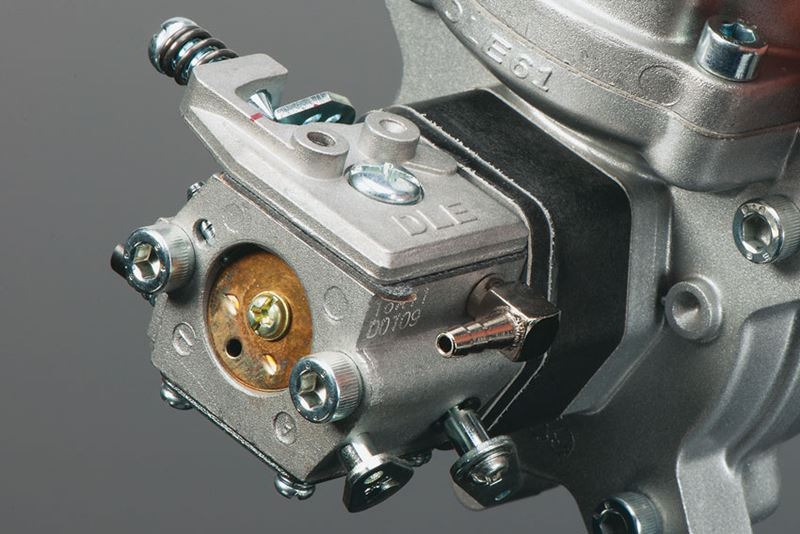

Each DLE carb is designed and matched to a specific engine for "no-compromise" performance.
Specifications:
- Stock Number: DLEG0061
- Displacement: 61.0 cc (3.7 cu in)
- Bore: 1.85 in (47 mm)
- Stroke: 1.38 in (35 mm)
- Total Weight: 3.86 lb (1.75 kg)
- Output: 6 hp @ 7,500 rpm

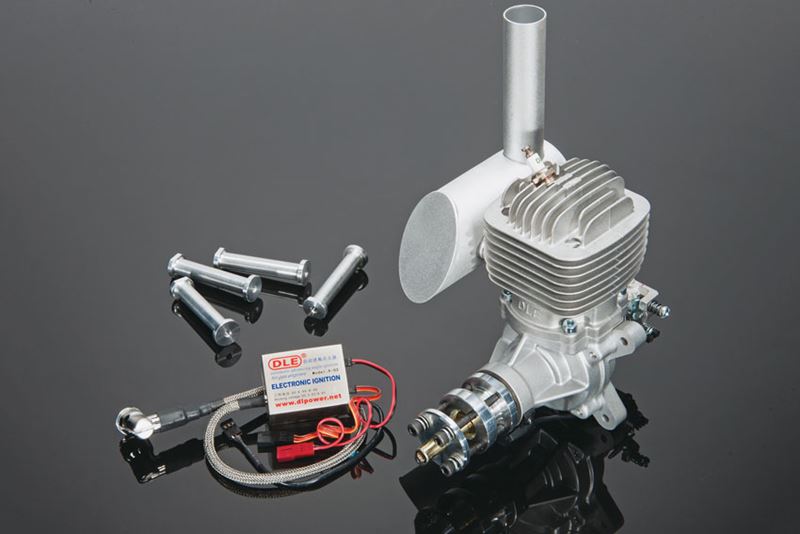

- Includes: Electronic ignition module, muffler, spark plug, standoffs, spiral wire wrap & connector safety clips.
- Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
- Suggested Propellers: 22x10, 23x8, 23x10, 24x8
DLE-61 Technical Data:
- Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack ((Voltage regulator required if LiPo or LiFe pack is used.)
- Gas/Oil Mix: 30:1
- Replacement Spark Plug: DLEG6126
- Static Thrust: 33 lb (15kg) @ 328 ft (100m) altitude; 28.7 lb (13 kg) @ 5,900 ft (1.8 km) altitude
- Weight Breakdown: Engine: 3.02 lb (1.373 kg); Muffler: 3.9 oz (110 g); Ignition Module: 3.9 oz (110 g); Mount: 4.5 oz (128 g); Miscellaneous: 1.2 oz (34 g)
