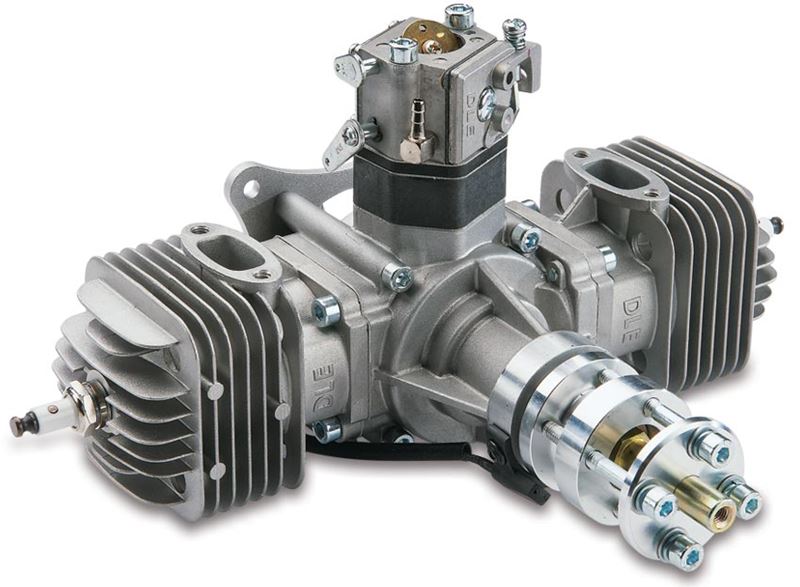

Give your sport aircraft the low-vibration smoothness and unique sound of a horizontally opposed twin! The DLE-60 Twin gasoline engine also offers strong horsepower and an excellent power-to-weight ratio, keeping weight low while producing all the muscle your bird requires.
Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-customized carburetor.
Includes two high-quality Pitts style mufflers, beveled to reduce installation work by avoiding need to cut into cowl, thus also preserving scale lines and aerodynamics.

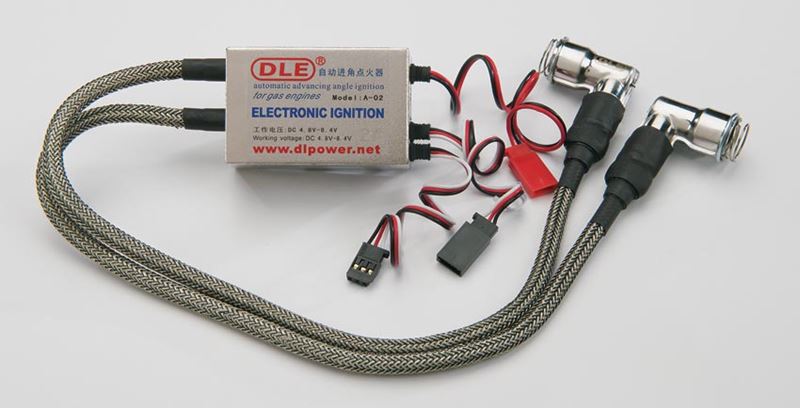

DLE Electronic Ignition
Enjoy hassle-free starts with the DLE electronic ignition system — now able to handle voltages from 4.8V to 12V, with redesigned circuitry and software for improved idle and throttle transition.
Loaded With Extras

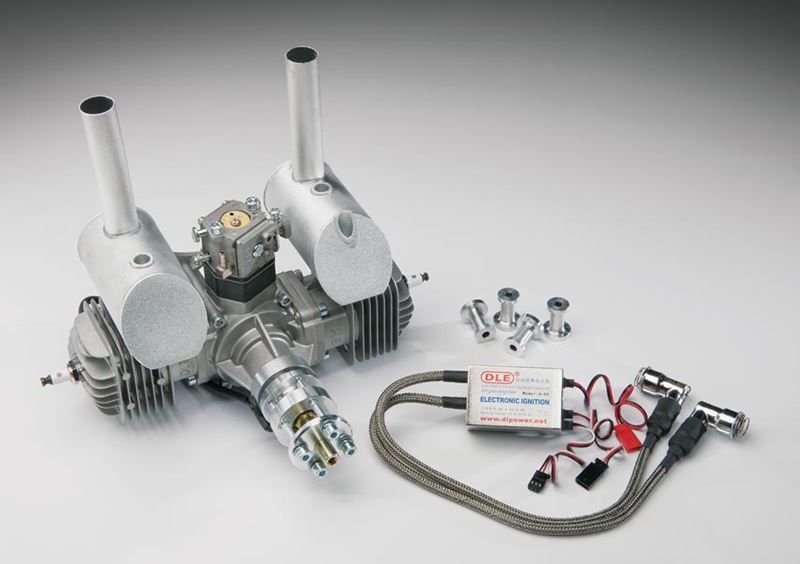

The DLE-60 Twin comes with many accessories that add to its value — including an electronic ignition system, mount, engine standoffs, spark plug and two Pitts-style mufflers.
Specifications:
- Stock Number: DLEG0060
- Displacement: 61 cc (3.7 cu in)
- Bore: 1.42 in (36 mm)
- Stroke: 1.18 in (30 mm)
- Total Weight: 4.37 lb (1.98 kg)
- RPM Range: 1,400-8,500
- Output: 7.0 hp @ 8,500 rpm
- Includes: Electronic ignition, 2 mufflers, 2 spark plugs, mount & engine standoffs
- Requires: Unleaded gasoline, oil, ignition battery & propeller
Technical Data:
- Ignition Battery: 4.8V-12V
- Compression Ratio: 7.6:1
- Gasoline/Oil Mix: 30:1
- Replacement Spark Plug: DLEG6026
- Weight Breakdown: Engine: 54.85 oz (1555 g); Muffler 1: 2.82 oz (80 g); Muffler 2: 3.0 oz (85 g); Ignition: 7.44 oz (211 g)
