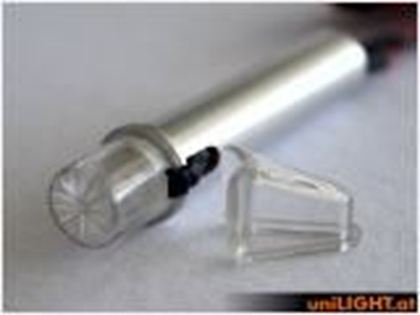

8Wx2 Ultra-Power SLIMF, 10mm, T-Fuse

Thin high-performance light with 8W and wide beam angle through a special spreading cap. Theslim light is delivered as a ready assembled unit on a special, CNC manufactured aluminium tube and a permanently mounted polycarbonate cap as covering. The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be used. Alternatively you can use a 4W-3S adaption cable.

Additionally, the scope of delivery contains another cap of polycarbonate, which transforms the luminaire into a profiled/drop-shaped outside light. The cap can be sperartely glued in and individually varnished in the model colour.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These 8W luminaires are not suitable for continuous operation without additional cooling, operation times of a few minutes are possible. Please check operation temperatures. The luminaires are perfectly suited to be BEACON or ACL lights.

Electricity: 8W reference power, 8(12)V, 0.7A
Beam angle: >160°
Light intensity: ~80 Lumen
Dimension cooling tube: D10x45mm, flange D12mm
Dimension light cap: D10x12.5mm
Total mass: D10/12mm, 57.5mm length
Weight: 5g (without cable)
Delivery: ready to use with 1m silicon cable and series resistor for 2S, resistor for 3S enclosed, profiled expansion cap
