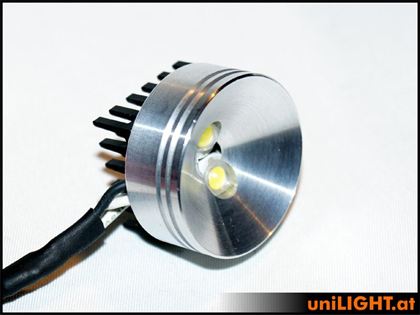

8Wx2 Aluminium Spotlight, 30mm, T-Fuse

This innovative 30mm category spotlight is suitable for all larger models and provides, on the basis of its enormous light power and wide angle beam, maximum visibility under all conditions. The integrated overtemperature protection was implemented in the mounted heatsink. In the event of overloading, it switches off the spotlight.

Ideal in tiptanks, hood or also as landing light in big high-winger. Due to the short construction, they are perfectly suitable for fuselage nose and drop down spotlight.

• High-quality aluminium reflector
• Wide angle beam: 100°
• Completely made of massive aluminium, CNC manufactured
• x2-technology for doubling light intensity
• Available in WHITE and WARMWHITE
• Integrated overtemperature protection

Technical data

Performance: 2x8W reference power
Overtemperature protection: switch-off and clocking of the light at 65-70°
Voltage: 8V, use enclosed resistor additionally for 12V!
Electricity: 0.7A
Beam angle: ~100°
Light intensity: 200x2Lumen WHITE
Light intensity: 180x2Lumen WARMWHITE
Dimension: D30x21mm
Weight: 15g (without cable)
Delivery: ready to use with 1m connection cable and additional resistor for 3S operation
