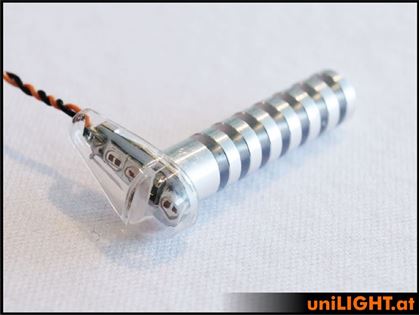

6Wx2 Strobe, 7mm - Red

Miniature strobe light in triple-chip configuration extremely powerful, externally very slim and fits optically onto the smallest models with big scale factors.

The profiled polycarbonate cap is delivered simply attached. It can be varnished separately, is highly transparent and unbreakable. The assembly of the lamp is astonishingly easy: with a simple surface mount, all you need is drill a 7mm hole. In this way, the luminaire can be also mounted on smaller wing tips or fuselage. The cap must be glued after the final assembly.

The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Please check operation temperatures after installation.

• Electricity: 6Wx2 reference power, 8(12)V, 0.45A
• Beam angle: >150°
• Light intensity: ~150 Lumen RED
• Light intensity: ~240 Lumen GREEN
• Light intensity: ~330 Lumen WHITE
• Dimension: 19x8x6
• Dimension cooling pin: D7x30
• Weight: 4g (without cable)
• Delivery: ready to use with 0.5m PTFE cable and ready made series resistor for 2S, resistor for 3S enclosed
