4W Universal & Round Light - Green

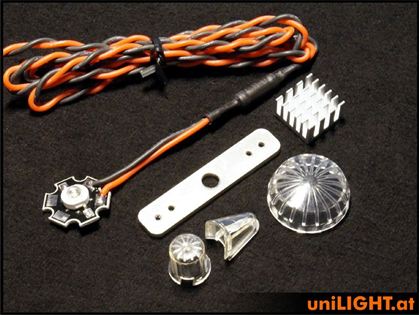

4W point light with three transparent polycarbonate caps (10mm and 24mm). The module is delivered completely wired-up on an aluminium retaining plate for cooling and mounting. Another small heatsink for an alternative mounting with smallest dimensions is included.

You only have to glue on the desired cap and heatsink with superglue. The 10mm cap serves as light distribution concerning the concealed installation behind a GFK wall. The 24mm cap can be used for external installation for it completely covers the module. The accessory includes a profile expansion, which can be optionally glued on the 10mm cap.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. Continuous operation with the provided cooling elements is possible when paying attention to a slight air flow. Please check operation temperatures after installation.

Electricity: 4W reference power, 8(12)V, 0.35A
Beam angle: ~160°
Light intensity: ~50 Lumen RED
Light intensity: ~70 Lumen GREEN
Light intensity: ~100 Lumen WHITE
Dimension base plate: 10x50mm
Dimension additional heatsink: 15x15x6mm, self-adhesive
Small cap: D10x12mm + profile expansion
Big cap: D24x10mm
Weight: 6g (without cable)
Delivery: ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed
