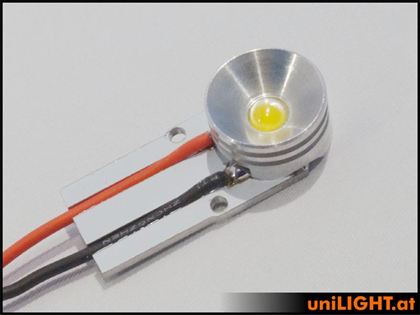

4W Gears-Spotlight, 16mm

Small spotlight with CNC manufactured aluminium reflector with 16mm diameter and assembly plate for horizontal cooling. Ideal on undercarriages or as folding spotlights. The enclosed heatsink can be glued on for improving operation time. The spotlight can be directly glued on the undercarriage leg with thermal conductive adhesive, then the mounting flange can be completely removed, so that only the reflector remains.

Direct operation with 2S LiPo (8V). With 3S (12V), the additional resistor has to be soldered in or use a W connection cable (accessories). Please ensure sufficient cooling air during operation.

Performance: 4W reference power
Voltage: 8V, use enclosed resistor for 12V
Electricity: 0.35A
Beam angle: ~100°
Light intensity: ~100 Lumen WHITE
Light intensity: ~95 Lumen WARMWHITE
Dimension: D16x36x9mm
Weight: 6g (without cable)
Delivery: ready to use with 1m connection cable and additional resistor for 3S operation
