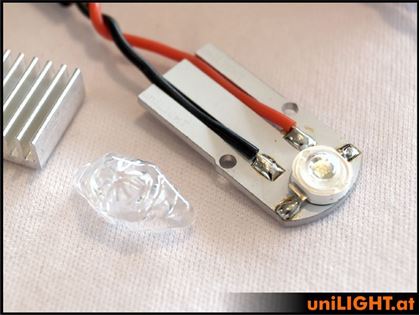

Very flat recessed light for mounting behind existing glazing on thin wings or tail units. The waste heat on the mounting level is dissipated on a special aluminium core PCB, which is why these lights only have a 7mm headroom. The scope of delivery contains an optionally usable, self-adhesive heatsink and mounting screws. For longer operation time, the heatsink can be placed underneath or above, depending on the space available.
Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. In delivery state, these lamps are only suitable for normal operation from 5 to 10 minutes when paying attention to a slight air flow. Please check operation temperatures after installation and ensure sufficient air cooling.
Technical Data
- Electricity: 4W reference power, 8(12)V, 0.35A
- Beam angle: ~160°
- Light intensity: ~50 Lumen RED
- Light intensity: ~70 Lumen GREEN
- Light intensity: ~100 Lumen WHITE
- Dimension flat light : 16x32x7mm
- Dimension additional heatsink: 15x15x6mm
- Weight: 5g (without cable)
- Delivery: ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed, heatsink, 8mm cap, mounting screws
