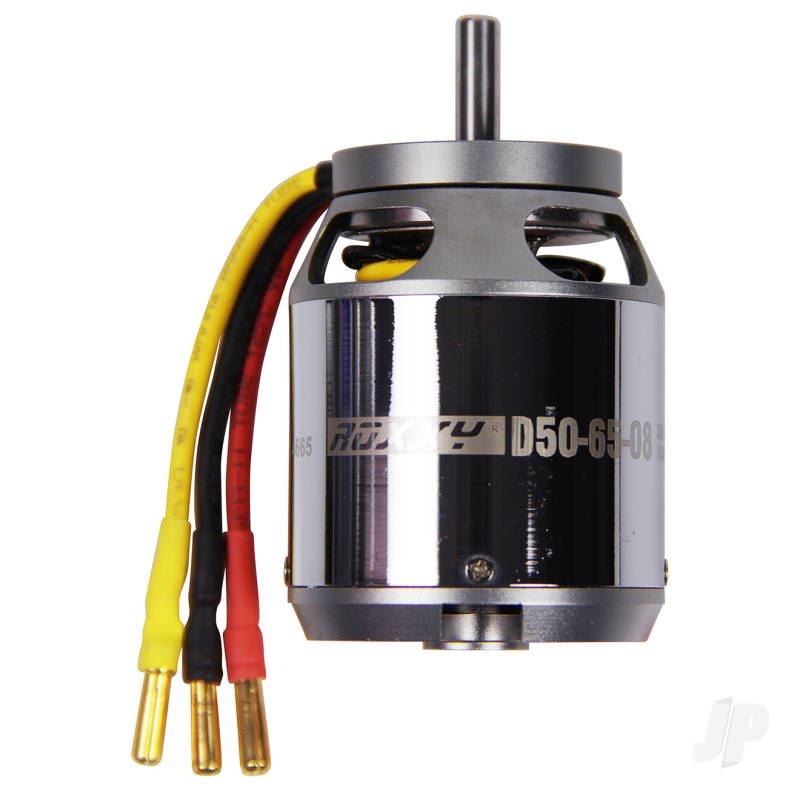

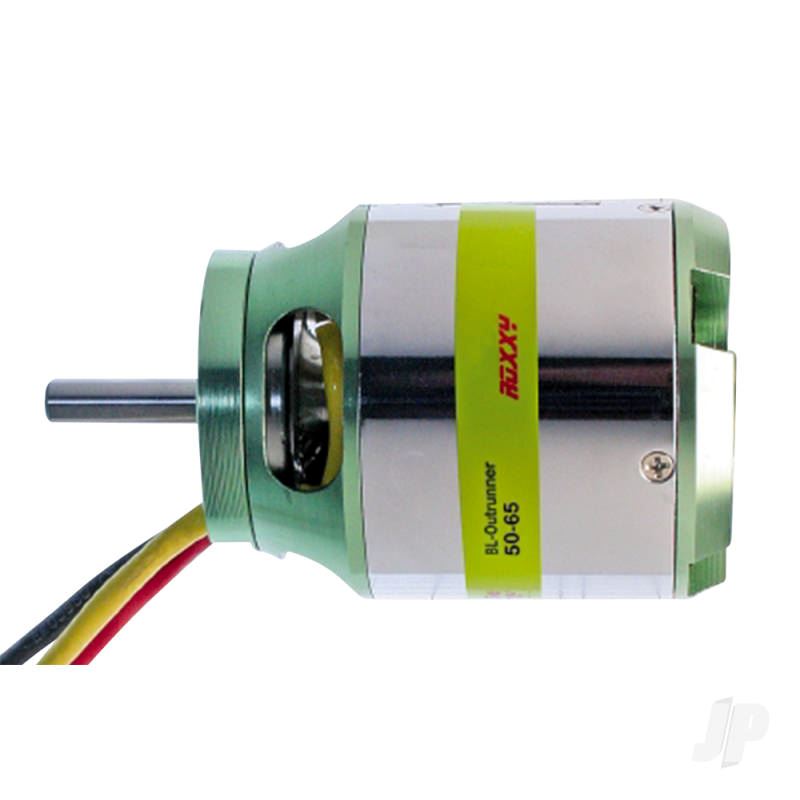

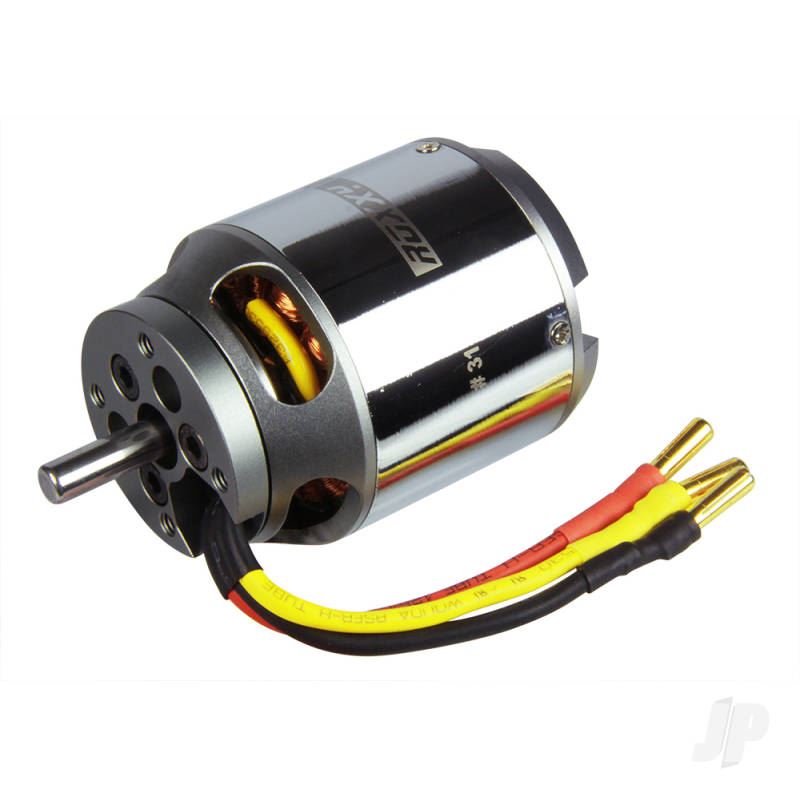

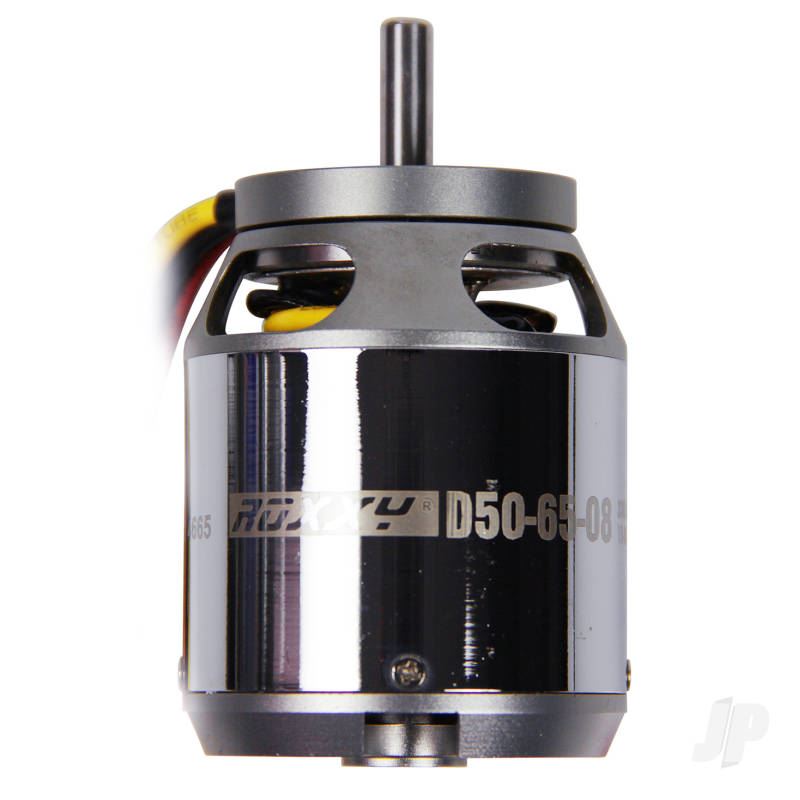

14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted by either end
ROXXY BL outrunner motors of the D and CA series are equipped with triple ballraces. To improve precision and smooth-running, a third ballrace, known as a thin-section bearing, is fitted. This prevents the motor bell distorting under load, ensuring smooth running.
Motor Technical Specifications
Weights & Dimensions
| Weight |
405g |
14.29oz |
|---|
| Shipping Weight |
0.58kg |
1.27lbs |
|---|
| Product Length |
65mm |
2.56in |
|---|
| Product Diameter |
50mm |
1.97in |
|---|
| Age Recommendation |
14+ |
|
|---|
