The receiver units
Five different receivers are available to match the CORE:
PBR-9D
This is a nine-channel receiver with two redundant receiver circuits. The unit features a P²BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 10.

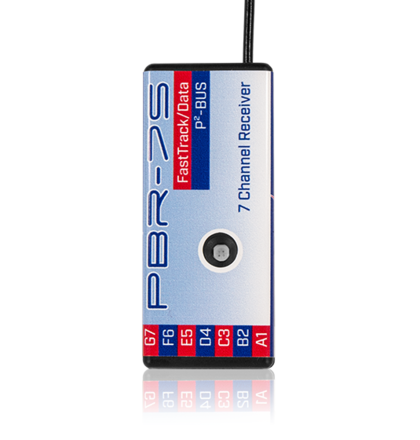

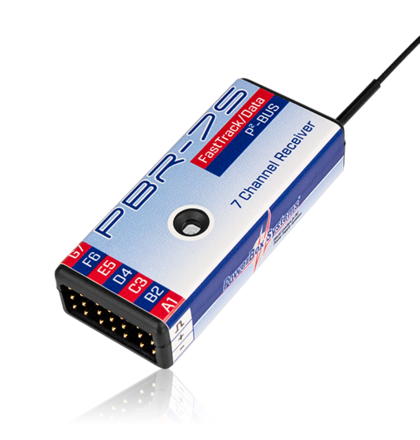

PBR-7S
This is a seven-channel receiver with a single receiver circuit. The unit features a P²BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 8.
PBR-5S
This is a five-channel receiver with a single receiver circuit. The unit features a P²BUS interface for servo and telemetry data, while its minuscule size makes it the natural choice for small models.
PBR-26D
This is a satellite receiver featuring two redundant receiver circuits. The unit features a P²BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or S-BUS. This unit is designed to be connected to our PowerBox power supply systems or a flybarless system.
PBR-8E
This is a eight-channel receiver with two redundant receiver circuits. The unit features 8 PWM servo outputs and telemetry data for battery voltage and RF-data.
With the exception of the PBR-5S and the PBR-8E all receivers have a FastTrack interface with which the iGyro SAT can be easily connected!
Features
- 7 Channel 2.4GHz Receiver
- Extreme interference rejection
- Ultra-long range

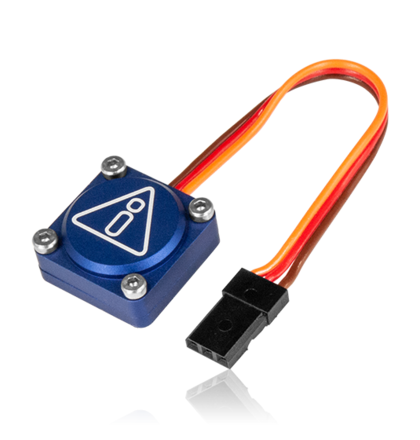

- Option of iGyro SAT
- Integral telemetry / servo bus (P²BUS)
- High-performance real-time telemetry
- Reception quality and airborne battery voltage available via telemetry as standard
- Auxiliary output can be configured as Channel 8 or as serial interface (S.BUS or SRXL)
- Parameters for all functions can be set from the transmitter
Technical Data
| Operating voltage |
4.0V - 9.0V |
| Supported RC systems |
CORE |
| Channels |
26 |
| Servo sockets |
7 (8) |
| Servo signal resolution |
4096 Steps |
| Integral gyro system |
optional with iGyro SAT |
| Supported telemetry systems |
P²BUS |
| Dimensions |
52 x 22 x 12 mm |
| Weight |
12g |
| Temperature range |
-30°C to +85°C |
