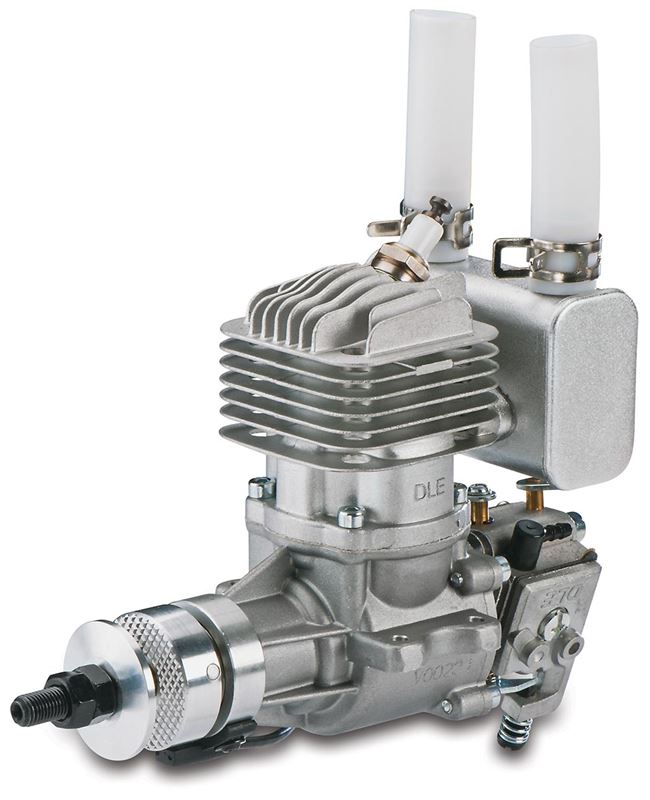

DLE-20RA Gasoline Engine

Glow size — rear-exhaust installation ease!

The DLE-20RA has the features you're looking for. Rear-exhaust design makes it an easy install even in cramped cowls — and a beam mount makes installation easy. A rear pumper carb offers consistently superior performance, as well as simple installation and adjustments.

A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE-20RA another attractive alternative to glow... and a solid buy for value and performance.

Features:

• Light, efficient design for a high power-to-weight ratio
• Lightweight piston for fast acceleration, excellent compression and low vibration
• CNC-machined parts for high performance and long life
• Sealed crankshaft bearings
• Perfect for use with tuned pipes
• Custom pumper carb
• Updated muffler for excellent aeration and power

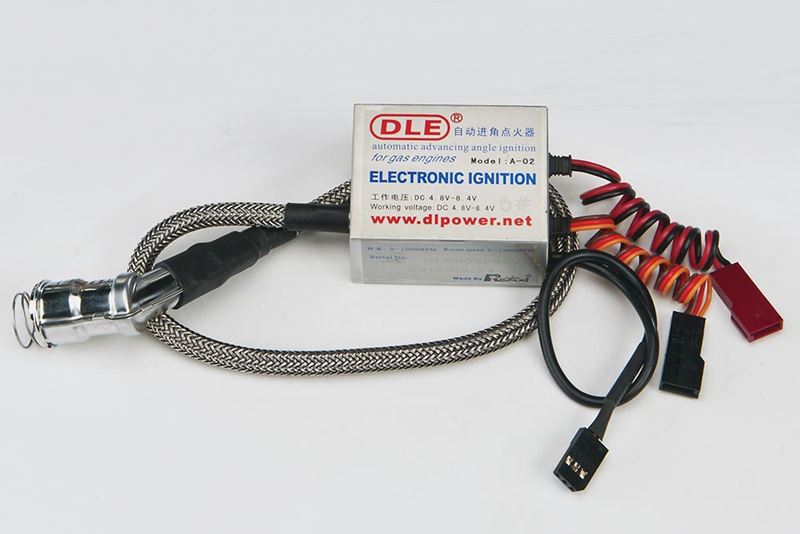

DLE electronic ignition
The newly updated DLE electronic ignition features ultra-smooth idle, easy starting and awesome throttle transition.

Loaded with "extras!"

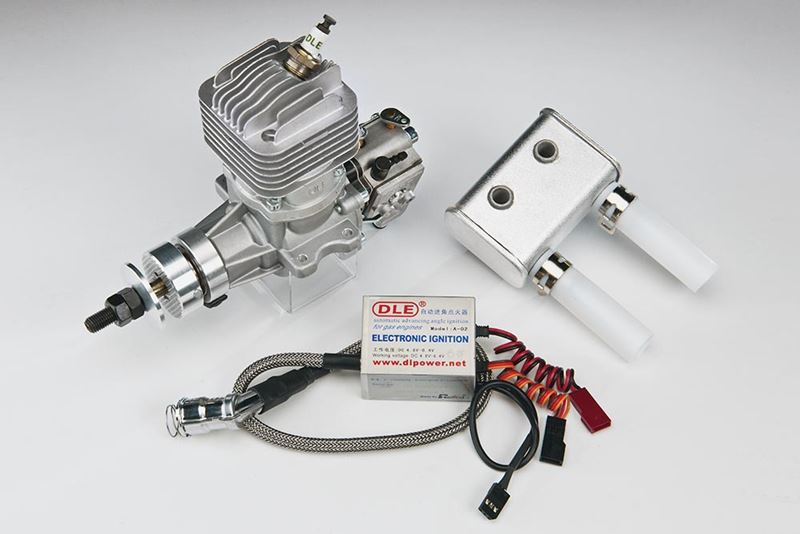

The DLE-20RA includes a gasket, bolts, throttle arm extension and two exhaust extensions, in addition to a compact muffler, spark plug and manual.

Specifications:

• Stock Number: DLEG0420
• Displacement: 20.0 cc (1.22 cu in)
• Bore: 1.26 in (32 mm)
• Stroke: 0.98 in (25 mm)
• Weight: Engine: 1.46 lb (660 g), Muffler: 2.8 oz (80 g), Ignition Module: 4.6 oz (130 g)
• Total: Weight: 1.92 lb (870 g)RPM Range: 1,700-9,000
• Output: 2.5 hp @ 9,000 rpm
• Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
• Includes: electronic ignition module, muffler, spark plug, manual, gasket, bolts, throttle arm extension & two exhaust extensions
• Suggested Propellers: 14x10, 15x8, 16x6, 16x8 & 17x6
• Suggested Break-in Prop: n/a

Technical Data:

• Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack (Voltage regulator required if LiPo or LiFe pack is used)
• Gasoline/Oil Mix: 30:1
• Replacement Spark Plug: DLEG2326
• Static Thrust: 13.88 lb (6.3 kg) @ 328 ft (100 m) altitude; 12.34 lb (5.6 kg) @ 5,900 ft (1800 m) altitude
