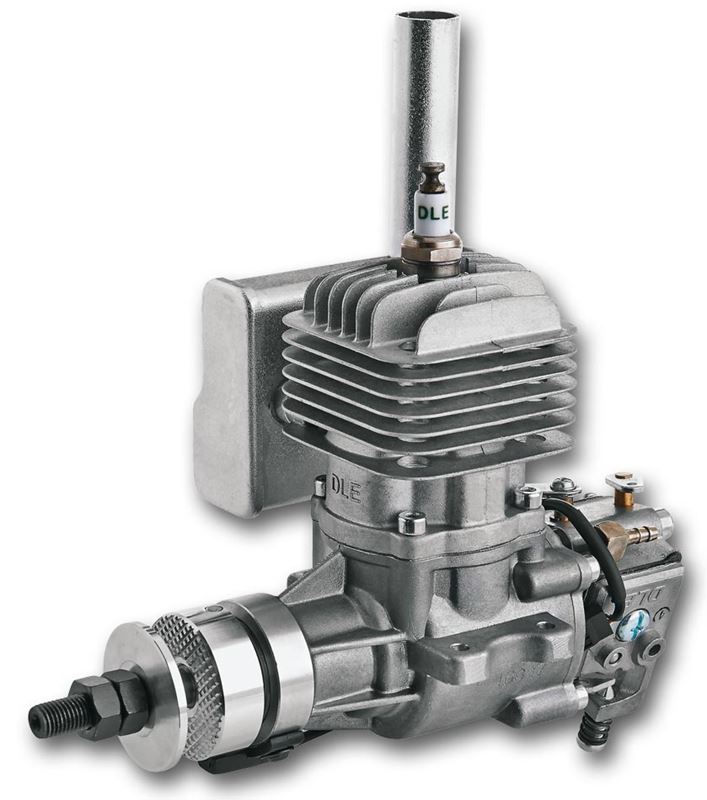

DLE-20 Gasoline Engine

Glow size — gasoline economy & ease!

Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gasoline upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment.

A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE-20 an attractive alternative to glow...and a solid buy for value and performance.

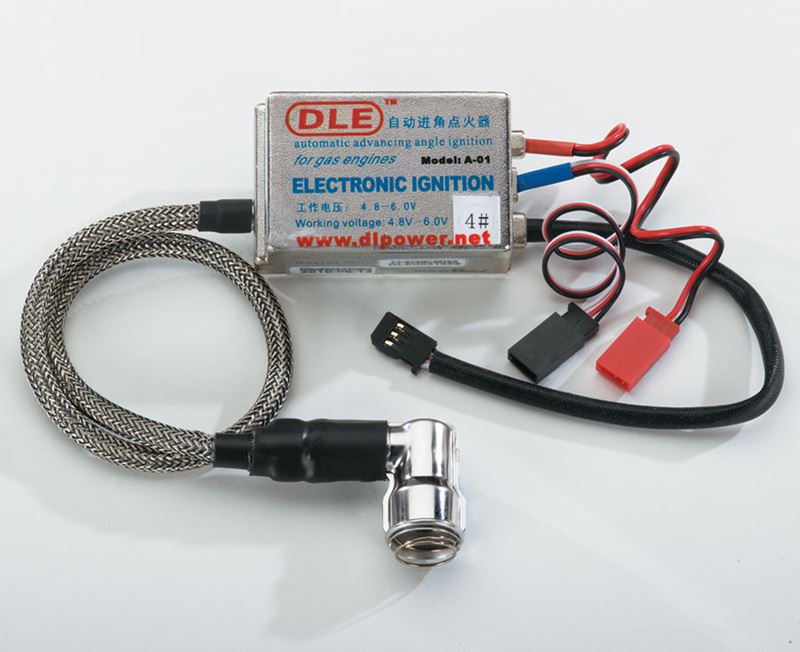

DLE electronic ignition
Electronic ignition is the no-hassle answer to simpler starts and higher performance.

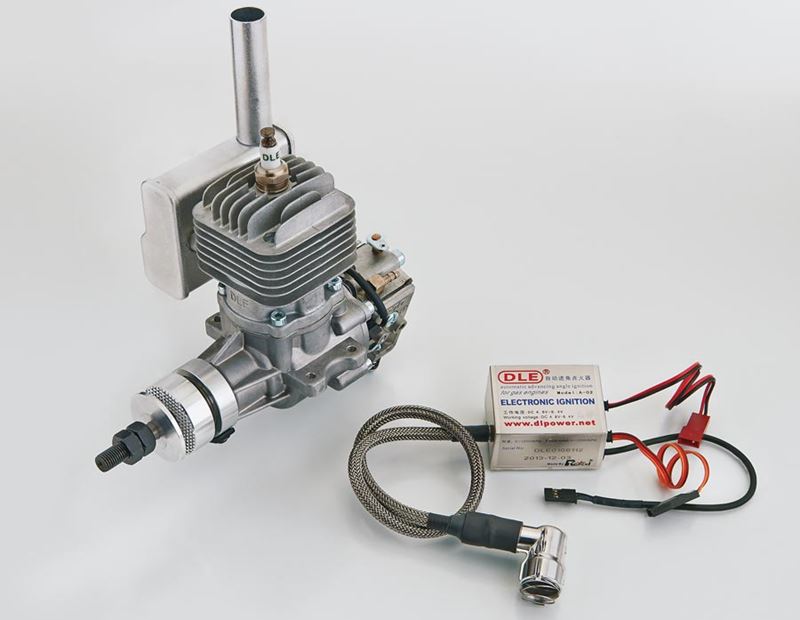

Loaded with "extras!"
The DLE-20 package includes a muffler, spark plug, gasket, bolts, throttle arm extension & manual.

Specifications:

• Stock Number: DLEG0020
• Displacement: 20 cc (1.22 cu in)
• Bore: 1.3 in (32 mm)
• Stroke: 1.0 in (25 mm)
• Weight: 28.9 oz (820 g)
• RPM Range: 1,750-9,000
• Output: 2.5 hp @ 9,000 rpm
• Requires: Gasoline, 2-cycle oil, ignition battery & propeller
• Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
• Suggested Propellers: 14x10, 15x8, 16x6, 16x8, 17x6
• Suggested Break-in Prop: n/a

Technical Data:

• Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (Voltage regulator required with LiPo or LiFe pack.)
• Compression Ratio: 10.5:1
• Gasoline/Oil Mix: 30:1
• Replacement Spark Plug: DLEG2126
• Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
