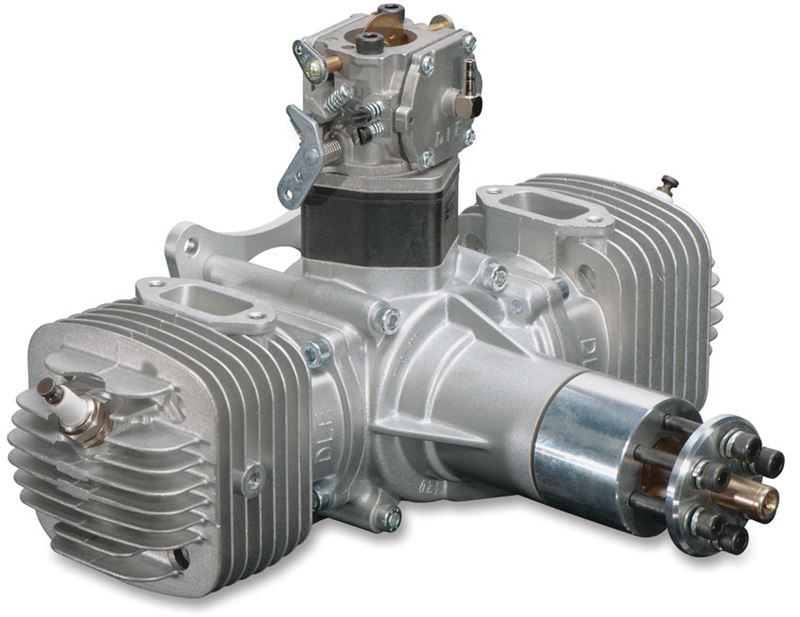

DLE-120 Twin Gasoline Engine

The DLE-120 delivers 50 pounds of static thrust—more than enough power for intense 3D maneuvers. Twin opposed cylinders reduce vibration and engine wear and increase performance.

Mufflers, standoffs and electronic ignition boost performance even further. The DLE-120 delivers the most punch at the lowest weight and the lowest price of any engine in its class. Pick up the DLE-120 and fly with performance-fueled confidence.

Features:

Efficient, light design for a high power-to-weight ratio
Light pistons for fast acceleration, excellent compression and low vibration
CNC-machined parts for high performance and long life
Sealed crankshaft bearings
Improved piston and cylinder contact area for increased engine lifespan.
Matched mufflers included for optimized power

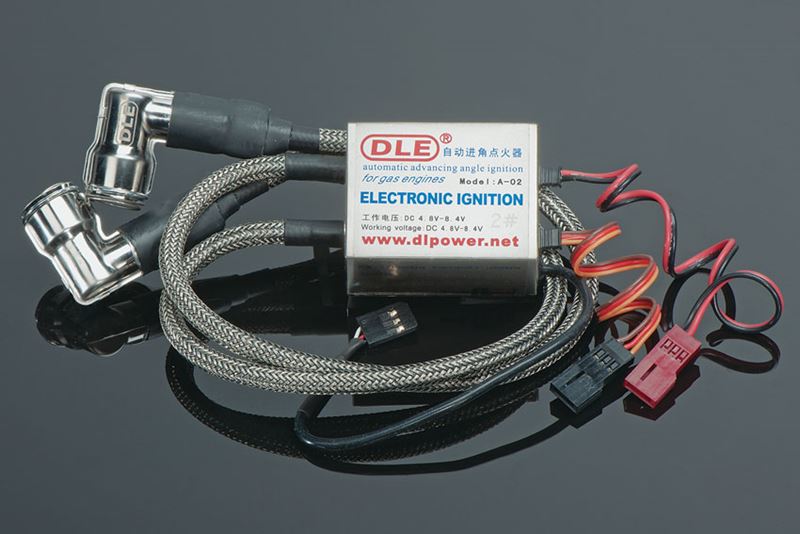

Electronic ignition module with spark plugs
Standoffs and mount
Spiral wire wrap

Loaded with performance and value.

• DLE Engines offer more for the money, with standard features that include electronic ignition, mufflers, spark plugs and more.
• DLE electronic ignition means faster first-time starts, smooth idling and superb throttle transition.

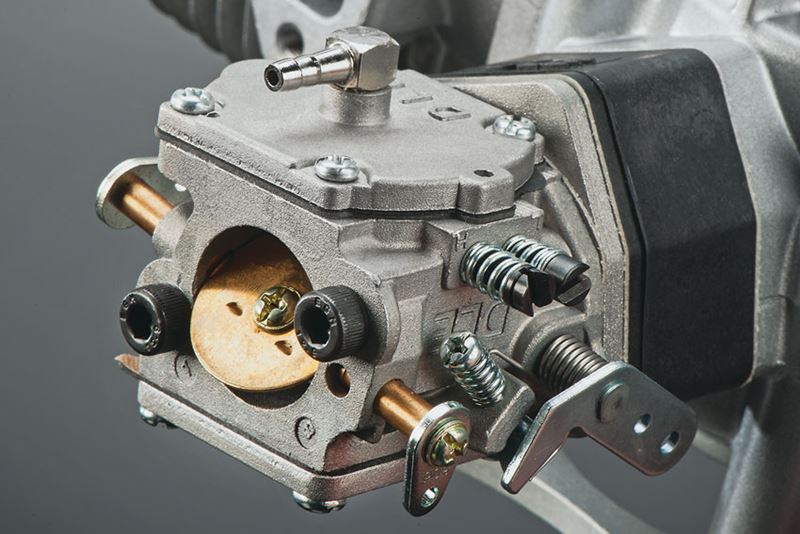

• Each DLE carb is designed and matched to a specific engine for "no-compromise" performance.

Specifications:

• Stock Number: DLEG0120
• Displacement: 120.0 cc (7.3 cu in)
• Bore: 1.85 in (47 mm)
• Stroke: 1.38 in (35 mm)
• Total Weight: 6.38 lb (2.895 kg)
• Output: 12 hp @ 7,500 rpm

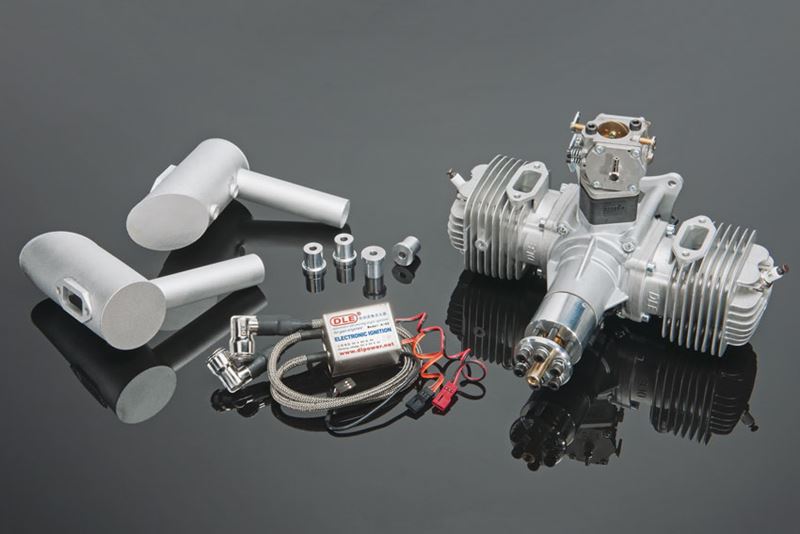

• Includes: Electronic ignition module, mufflers, spark plugs, mount, standoffs, spiral wire wrap & connector safety clips
• Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
• Suggested Propellers: 26x10, 26x12, 27x10, 28x10

DLE-120 Technical Data:

• Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack (Voltage regulator required if LiFe or LiPo pack is used.)
• Gas/Oil Mix: 30:1
• Compression Ratio: 10.5:1
• Replacement Spark Plug: DLEG1326
• Static Thrust: 20.9 lb (9.5 kg) @ 328 feet altitude, 18.7 lb (8.5 kg) @ 1,800 feet altitude
• Weight Breakdown: Engine: 5.34 lb (2.42 kg); Muffler 1: 3.6 oz (103 g); Muffler 2: 3.9 oz (111 g); Ignition Module: 5.3 oz (149 g); Miscellaneous: 4 oz (112 g)
