4W PURE light (green)

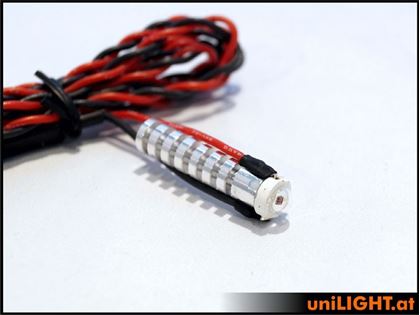

Universal light for installation behind existing glass cap, mostly on wingtips or on the leading edge or special DIY solutions. The module is being delivered completely prewired on an aluminium heatsink.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. In delivery state, these lamps are only suitable for normal operation from 5 to 10 minutes when paying attention to a slight air flow. Please check operation temperatures after installation and ensure sufficient air cooling.

• Electricity: 4W reference power, 8(12)V, 0.35A
• Beam angle: ~160°
• Light intensity: ~50 Lumen RED
• Light intensity: ~70 Lumen GREEN
• Light intensity: ~100 Lumen WHITE
• Dimension bolt : D7x30mm
• Dimension chip: D8mm
• Weight: 3g (without cable)
• Delivery: ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed
