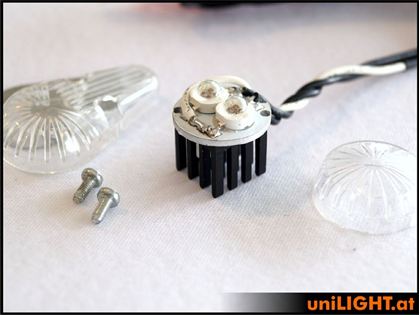

8Wx2 universal DOUBLE-BEACON, 24mm, T-Fuse

High power light with two 8Wx2 reference power and wide radiation angle. The lights are controlled seperately and can be used as rotating beacon or parallel as ultra high power strobe. The light is delivered with several radiation caps for individual usage:

1x 24mm ROUND
1x 24mm PROFILE

The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be used. Alternatively you can use two 8W-3S adaption cable.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These 8W luminaires are not suitable for continuous operation without additional cooling, operation times of a few minutes are possible. Please check operation temperatures. The luminaires are perfectly suited to be BEACON or ACL lights. The integrated temperature sensor will switch off the light in case of overheating.

Technical Data

Electricity: 8W reference power, 8(12)V, 2x0.7A
Beam angle: >160°
Light intensity: 2x~200 Lumen RED
Light intensity: 2x~400 Lumen WHITE
Dimension: 24x20x20mm
Weight: 6g (without cable)
Delivery: ready to use with 1m silicon cable and series resistor for 2S, resistor for 3S enclosed
