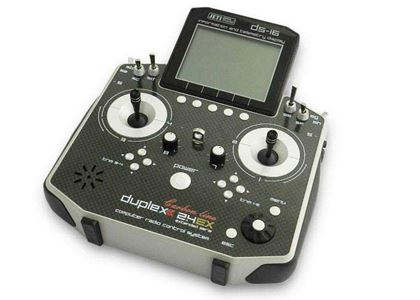

JETI SILVER CARBON DS-16 (SUPPLIED MODE 2) Thumb-style variant of the top-class RC transmitter of JETI model. The transmitters DC-16 and DS-16 came to existence under cooperation of professional pilots and world champions. They have been developed with the aim of maximum utility, simple handling as well as maximum durability and reliability of mechanical parts. The metal case provides maximum protection of the interior as well as of the outside surfaces against chemicals and the straightforward shapes make servicing easy. Metal quad ball raced stick units with magnetic Hall sensors confirm the revolutionary design concept of this mostly strained element of a RC-System.
DC-16 and DS-16 transmitters have the same software possibilities, besides, the thumb style variant has a built-in tri-axis accelerometer with gyroscope, via which it is possible to control extra functions of the model.
A backlit LCD display placed on the top side of the transmitter offers perfect legibility at any lighting condition and a surveillance angle. Thanks to the high display resolution and application of a relatively big amount of graphic images it was possible to create a simple and intuitive setting procedure, especially for displaying telemetric data.
The DUPLEX EX product family has been equipped with an improved telemetric data transfer system and the subsequent data processing on the LCD transmitter display or analysis on a PC. The transmitter allows setup of acoustical notifications (optionally created by the user himself), which are related to the actual telemetric values or to sound signals assigned to conditions of particular control elements.
Duplex 2,4GHz – for flight control and reception of telemetric data from the model to the transmitter the DC-16 takes advantage of the wireless system Duplex 2,4GHz, which has been developed by the JETI company as well. The data transfer system Duplex 2,4GHz is very reliable and has been verified during many years.
THIS RADIO IS SUPPLIED AS MODE 2 - YOU CAN CHANGE MODE IF REQUIRED TO MODE 1,2,3,4,5 VERY SIMPLY IN BOTH FIRMWARE AND HARDWARE.
DS-16 main features
PACKAGE CONTENTS:
1 x DS-16 Silver Carbon transmitter
1 x Duplex REX 10 Receiver
1 x Aluminium Transmitter Case
1 x USB Cable
1 x Cleaning cloth
1 x UK Instruction manual
1 x Wall charger (UK)
HARDWARE:
2.4 GHz Jeti Duplex system with dual transmitter modules for full redundancy with one Rx or two Rx, or for use as a trainer system with 2,4GHz link.
Silver Magnesium body
3,8 inch wide display with backlight, 320 x 240 pixels
Weight only 1,2 kg
2 GB memory
Integrated antenna
Integrated long life Li-Ion battery
Aluminium transport box
Aluminium sticks - variable in length with bearings
Scanning sticks position by hall sensor - 4096 throttle steps resolution
Swivelling stick units
Voice output
Headphones jack
Digital trims
SOFTWARE:
24 channels (yes, full 24 Channels)
Customisable menu
Unlimited programming options on all channels
Unlimited model memories
Firmware upgradable
Ultra fast response
Power management system
3 model types programming ((AERO / HELI / X-COPTER / GENERAL)
5 languages (EN / DE / CZ / PL / FR)
Power management system
